Will a Kimbo Truck Camper Fit Your Truck? A Payload Guide

 7 min read

Why Payload Decides Your Kimbo Truck Camper Fit

A Kimbo truck camper draws a crowd. We have watched people line up at the Kimbo booth at Overland Expo for several years running, and the questions rarely change. First comes admiration for the riveted aluminum shell. Then comes the practical worry: will it fit my truck?

This guide answers the fitment question we hear most from readers. The short version is simple. A Kimbo fits a wide range of trucks, yet the deciding factor is payload, not bed size alone. Because the Kimbo 6 starts at 830 pounds dry and the Kimbo 8 climbs past 1,600 pounds loaded, your truck’s rated payload sets the true limit.

Two models cover most buyers. The Kimbo 6 targets midsize trucks such as the Toyota Tacoma, Ford Ranger, Chevy Colorado, and Jeep Gladiator. Meanwhile the Kimbo 8 steps up to full-size platforms like the Tundra, F-150, Silverado, Sierra, and Ram. Both use a hard-side aluminum monocoque, so neither folds down for travel.

If you want the full evaluation of build quality and livability, read our full Kimbo Camper review. This article stays focused on one job: matching a Kimbo truck camper to the payload your truck has.

Kimbo 6 vs Kimbo 8 Specs at a Glance

Before the payload math, compare the two campers side by side. These figures come straight from Kimbo and shape every fitment decision. The Kimbo camper dimensions and weight differ enough to push each model toward a different truck class.

A larger shell explains the Kimbo camper price gap. For midsize owners, the Kimbo 6 is the natural pick. Conversely, full-time travelers who want the wet bath and queen bed lean toward the Kimbo 8.

The Payload Math Most Buyers Skip

Payload is the weight your truck carries above its own curb weight. It includes passengers, fuel in some ratings, gear, accessories, and the camper itself. Therefore the dry weight on a spec sheet is only the starting number, never the finished one.

Start with your door-jamb sticker. Kimbo says it plainly across its per-truck fit guides: the door-jamb sticker is the truth, while brochure and configurator numbers are the upper bound. Your specific truck’s sticker is the figure a Kimbo install has to live within.

Next, build the real load. A Kimbo 6 at 830 pounds dry gains weight fast once you add a battery upgrade, water, a roof rack, and recovery gear. For example, a configured Kimbo 6 reaches roughly 1,200 pounds before you load a single duffel. Then pile on two adults, a dog, food, and fuel, and the Kimbo camper weight climbs well past the dry figure.

As a result, the buyers who run into trouble are the ones who compare dry weight to brochure payload and stop there. Instead, subtract a realistic loaded camper weight, your passengers, and your gear from your sticker payload. Whatever margin remains is your true headroom. Our truck bed camper buying guide walks through the same approach across other brands.

Kimbo Truck Camper Payload by Truck

The table below shows the published payload ranges Kimbo lists for popular platforms, along with the model each truck class pairs with. Payload swings widely by trim, cab, and bed, so treat these as ranges and confirm your own sticker.

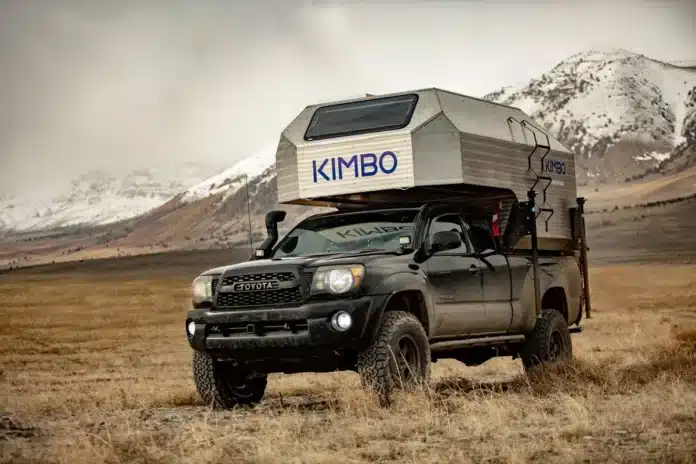

Read the ranges carefully. A Jeep Gladiator in off-road trims like the Mojave or Rubicon sits near the bottom around 1,075 pounds, which leaves thin margin for a loaded Kimbo 6. By contrast, a Ford Ranger holds the best payload cushion in the midsize class. The Tacoma is the original Kimbo platform and the most-installed truck in a fleet of more than 600 Kimbos built since 2016. On a 3rd Gen TRD Off-Road or SR5 long bed, it has the bed length and payload to work well.

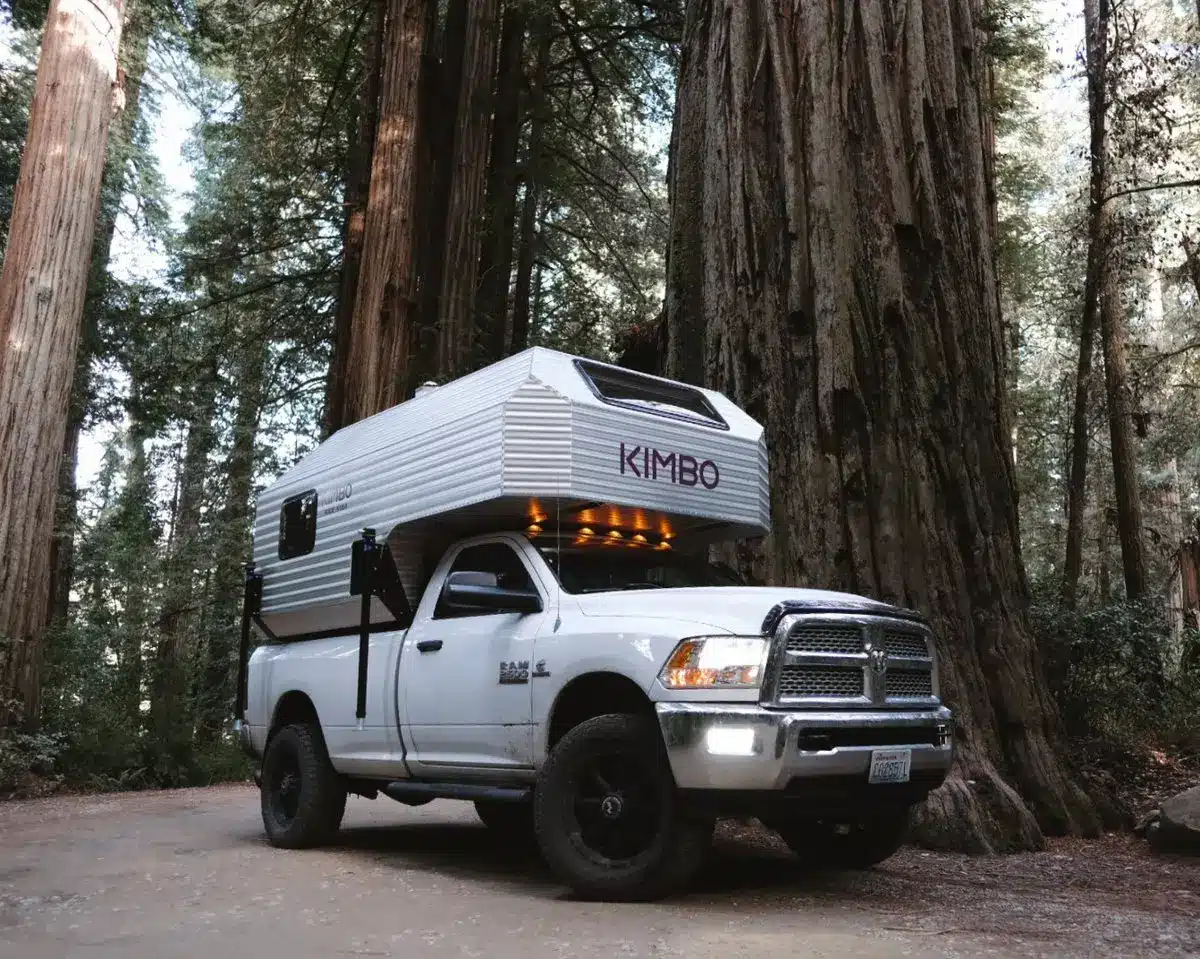

Half-ton trucks widen the picture further. An F-150 with the Heavy Duty Payload Package clears well past 3,000 pounds, so it swallows either Kimbo model with room to spare. A base F-150, however, gives comfortable rather than generous margin for a Kimbo 6. Other full-size trucks, including the Tundra, Silverado, Sierra, and Ram, follow the same pattern and carry either Kimbo model with comparable margin. If you drive a Tacoma, our guide to the best Toyota Tacoma off-road trims helps you read how trim choice shifts payload.

Bed Length and Tailgate Behavior

Payload decides whether you should carry a Kimbo. The bed length then decides how it sits. Specifically, a bed of 6 feet or longer lets the tailgate close cleanly with a Kimbo 6 installed. A 5-foot short bed still works, yet the tailgate stays down during use.

The Kimbo 8 needs more floor. It calls for a 6.5 to 8 foot bed, which keeps it on full-size trucks. Because the Kimbo camper dimensions are fixed by the aluminum shell, no trimming or folding changes these numbers. Measure your bed first, then match the model.

Tailgate-down operation is common and livable, especially on a short-bed double cab. Still, plan for the extra rear overhang when you judge departure angle on the trail. After you confirm payload and bed length, the model choice usually becomes obvious.

Suspension and Tires for a Safe Setup

Even a legal payload feels different with a Kimbo high in the bed. The load sits above the axle, so it raises the center of gravity and adds sway. For this reason, Kimbo recommends airbags and E-rated tires on midsize trucks regardless of trim.

Airbags level the rear and reduce squat under load. E-rated tires add load capacity and sidewall stiffness, which steadies the truck in crosswinds and on washboard. On a Jeep Gladiator, Kimbo advises adding airbags before the install rather than after.

These upgrades support payload; they do not raise it. Your gross vehicle weight rating stays the same no matter how many airbags you add. Consequently, the door-jamb number remains the ceiling, and the suspension work simply makes living under the ceiling safer and more comfortable.

Getting Your Kimbo Fit Right

Match the model to your truck class first. A midsize truck pairs with the Kimbo 6, while a full-size truck opens the door to the Kimbo 8. From there, the Kimbo camper price follows the model, starting at $27,990 for the 6 and $42,990 for the 8.

Then run the numbers in order. Read your door-jamb payload, subtract a realistically loaded camper weight, subtract passengers and gear, and look at the margin. If the margin is thin, step down a model, change trim, or add airbags and E-rated tires for a safer setup. Once the camper is matched, our guide to boondocking with a truck camper helps you use it off-grid.

We built this as a quick reference because the fitment question comes up at every show and in our inbox all year. If anything here leaves you unsure, reach out to the Kimbo team directly. They are stand-up people who love what they build, and they review every truck’s specs before they commit to an install.

Frequently Asked Questions

How much does a Kimbo camper cost?

The Kimbo 6 starts at $27,990, and the Kimbo 8 starts at $42,990. Options such as larger batteries, water tanks, and build-out modules raise the final price. Battery and galley upgrades also add to the Kimbo camper weight, so budget and payload move together.

How much does a Kimbo truck camper weigh?

A Kimbo 6 weighs 830 pounds dry and reaches about 1,200 pounds once configured. The Kimbo 8 ranges from 1,125 to 1,660 pounds depending on options. Always add water, gear, and passengers on top of these numbers when you plan payload.

Will a Kimbo camper fit a Tacoma?

Yes. The Kimbo 6 was designed around the Tacoma, the most-installed truck in Kimbo’s fleet of 600-plus campers. A 6-foot long bed closes the tailgate, while a 5-foot short bed runs tailgate-down. Kimbo lists Tacoma payload between 1,100 and 1,685 pounds, so check your sticker.

What trucks fit a Kimbo truck camper?

The Kimbo 6 fits midsize trucks like the Tacoma, Ranger, Colorado, Canyon, and Gladiator. Its larger sibling, the Kimbo 8, fits full-size trucks such as the Tundra, F-150, Silverado, Sierra, and Ram. Bed length and payload determine the best match for each truck.

Do I need to upgrade my suspension for a Kimbo?

Kimbo recommends airbags and E-rated tires on midsize trucks regardless of trim. These upgrades level the truck and improve stability, though they do not raise your payload rating. The door-jamb figure stays the ceiling for any safe setup.
