Diesel Heater Sizing Starts With Heat Loss

Diesel heater sizing has almost nothing to do with the square footage printed on the box. Instead, it depends on how fast your shelter loses heat to the outside air. A canvas wall tent bleeds heat roughly ten times faster than an insulated van. Same heater, same thermostat setting, two completely different outcomes.

Most buyers ask what size diesel heater covers their space, then reach for the biggest number on the listing. Pricing encourages it. VEVOR listed its “2kW” unit at $125.99 and its “8kW” unit at $125.39 at Home Depot in August 2026, a 60 cent gap. However, the bigger label delivers worse comfort, more soot and more failed starts inside a small insulated build.

This guide works the problem the way a heating engineer does. First, calculate the heat your shelter loses per hour at a realistic winter temperature difference. Next, match a heater whose minimum output sits at or below the calculated load. Finally, adjust for insulation quality, expected overnight low and elevation. For the underlying method, see the standard heat loss treatment at Engineering ToolBox.

Every number below assumes a 40°F difference between inside and outside, for example 20°F outdoors and 60°F indoors. Because heat loss scales in a straight line, doubling the gap doubles the load.

kW and BTU: The Diesel Heater Sizing Numbers

One kilowatt equals 3,412 BTU/hr, a fixed conversion published by NIST. So a genuine 2kW heater tops out near 6,800 BTU/hr and a genuine 5kW heater near 17,000 BTU/hr. Diesel heater BTU figures on retail listings come from exactly this multiplication. So a “27,200 BTU” label and an “8kW” label describe the same claim.

The number nobody prints on the box matters more: minimum sustained output. Every diesel air heater modulates down to a floor, and below the floor it shuts off and restarts. Notably, the floors cluster far closer together than the peaks do.

Two details here drive real decisions. First, the Espar D4L modulates to 900 W, within 50 W of the D2L floor. Stepping up a size costs almost nothing in low-end control on the Espar platform. Second, both Webasto Evo units floor at 1,500 W, a 67% higher minimum than the Air Top 2000 STC. Consequently, the larger Webasto suits a small insulated van poorly despite looking like an upgrade.

Diesel Heater Sizing Table by Shelter Type

Every load below is calculated, not measured. The volumes come from manufacturer dimensions where published, while the R-values and air-change rates behind each load are engineering estimates. No manufacturer publishes an R-value for tent fabric or an air-change rate for a van. Therefore treat these rows as worked examples with a wide error band.

How to Read the Sizing Table

Diesel heater sizing runs opposite to intuition here. Soft shelters are small and still demand the most heat, because fabric offers roughly the thermal resistance of still air. Hard-sided insulated builds are larger and demand the least. Notice how many rows resolve to the 2kW class once a wall has foam in it. Our roundup of the best diesel heaters we recommend lists specific units in each class.

The insulated Sprinter row deserves a second look. Its 2,700 BTU/hr load sits below the 2,900 BTU/hr floor of the smallest name-brand 2kW unit. So even the smallest genuine heater on the market will not modulate down to a Sprinter 144 build at 20°F. It will cycle. Everything larger cycles harder.

Why 5kW and 8kW Labels Overstate Output

Fuel sets a hard ceiling on heat. Diesel carries 137,381 BTU per gallon according to EIA figures published by the EPA, or 36,292 BTU per liter. Multiply a heater’s published fuel rate by 36,292, then by about 0.85 for realistic efficiency. The result is a calculated ceiling rather than a lab measurement, although no unit exceeds it.

What the Fuel Math Shows

Espar’s M2 D4L and the VEVOR “8kW” spec sheet both publish 0.51 L/hr at full output. One calls itself 4 kW. The other calls itself 8 kW. Same physics, different marketing departments.

Run the same arithmetic across the name brands and every one lands between 0.87x and 0.92x of its calculated ceiling. In other words, they burn slightly more fuel than their rating implies, which is what honest efficiency looks like. By contrast, Hcalory names a single SKU “5kW-8kW” and sells one burner under two numbers. An independent tester at The Technology Man weighed an Hcalory TB-MAX across a 3 hour 50 minute run. The measured burn came to 0.50 L/hr, roughly 4.5 kW by the formula above.

One caveat belongs on the sharpest row. VEVOR’s 27,200 BTU listing shows 0.24 L/hr, most likely a data-entry error rather than a different machine. For comparison, the same brand’s “2kW” listing shows a higher 0.26 L/hr maximum. Read it as evidence of unaudited spec fields instead of a deliberate claim. Our 2kW to 8kW output compared breakdown walks the lineup model by model.

Temperature, Insulation and Altitude Adjustments

Three corrections turn a table number into your number. Diesel heater sizing goes wrong most often at this stage, so apply them in order.

Adjust for Temperature

Heat loss tracks the inside-outside difference in a straight line. At a 60°F difference, multiply the table load by 1.5. Raise the multiplier to 2.0 at an 80°F difference. A van showing 2,700 BTU/hr at 20°F outdoors needs about 5,400 BTU/hr when the overnight low hits minus 20°F.

Adjust for Insulation

Compare two rows of the sizing table at identical volume. A bare metal Sprinter shell loses about 14,000 BTU/hr, while the same shell lined with 1.5 inch polyiso loses about 2,700. Call it a multiplier near 5 for bare metal and near 2 for a half-finished build. Polyiso also drops from about R-5.6 per inch at 75°F to R-5.0 at 15°F, so it weakens as the night gets colder. Thermal bridging through the steel ribs then pulls a nominal R-8.4 wall down to an effective R-4 to R-6.

Adjust for Altitude

Air density falls about 3% per 1,000 feet. Therefore an uncompensated heater at 8,000 feet runs rich, makes soot and loses roughly a quarter of its usable output. Eberspächer switches its heaters into high-altitude mode above 1,500 meters, or 4,921 feet, which marks the practical line for manual adjustment. Community tuning guides trim pump frequency about 4% per 1,000 feet above the switchover.

Automatic compensation varies more than buyers expect. Webasto’s Air Top Evo 40 compensates to 18,044 feet. Meanwhile the larger Evo 55 stops at 7,218 feet, so buying up in the same family costs you 10,800 feet of capability. Espar’s S2 and M2 compensate to 9,843 feet.

The Oversizing Trap in Diesel Heater Sizing

Diesel heater sizing fails in a predictable sequence once the unit runs well past the load. An oversized heater never reaches its designed operating temperature. Below temperature the burner atomizes fuel poorly, combustion runs rich, and carbon collects on the glow pin, burner mesh and heat exchanger. Those deposits degrade atomization further, so the fault accelerates itself.

Meanwhile, the thermostat satisfies within minutes and shuts the unit down. Each restart fires the glow plug, the highest-current and highest-wear event in the whole cycle. Instead of steady warmth you get temperature swings, more soot and a shorter burner life.

Manufacturers already treat deposit buildup as a normal-running problem. Webasto’s Evo 40/55 service manual notes the fuel pump delivery drops for 10 seconds every 10 minutes. The stated reason is “to increase the burner service life in continuous operation.” Separately, Eberspächer tells biodiesel users to run the heater at its highest setting for 30 minutes. Two or three such cycles burn off accumulated residue. Neither document mentions oversizing or load level, so read both as evidence of how readily these burners collect residue rather than as proof of the sequence above.

If your calculated load lands below the smallest option’s floor, the fix is not a bigger heater. Instead, duct part of the output outside the living space or crack a vent. Alternatively, accept the cycling and run a full-power burn for half an hour every few weeks. For a look at a mid-size unit in a small space, see when 4kW is too much heater.

2kW vs 5kW Diesel Heater: Which Size Fits

The honest comparison is not 2kW against 5kW. Instead, it is a genuine 2kW against a clone whose “5kW” and “8kW” labels both describe a burner delivering 3.3 to 4.6 kW. Once you price the claims correctly, the decision narrows fast.

Pick the 2kW class for any insulated van, truck camper, teardrop or truck canopy. Its 2,900 BTU/hr floor sits close to what a hard-sided insulated build loses at 20°F. Meanwhile its 0.28 L/hr peak burn stretches a 5 gallon jug past 60 hours. A 2kw diesel heater also draws about 0.5 A running, which barely registers against a lithium bank.

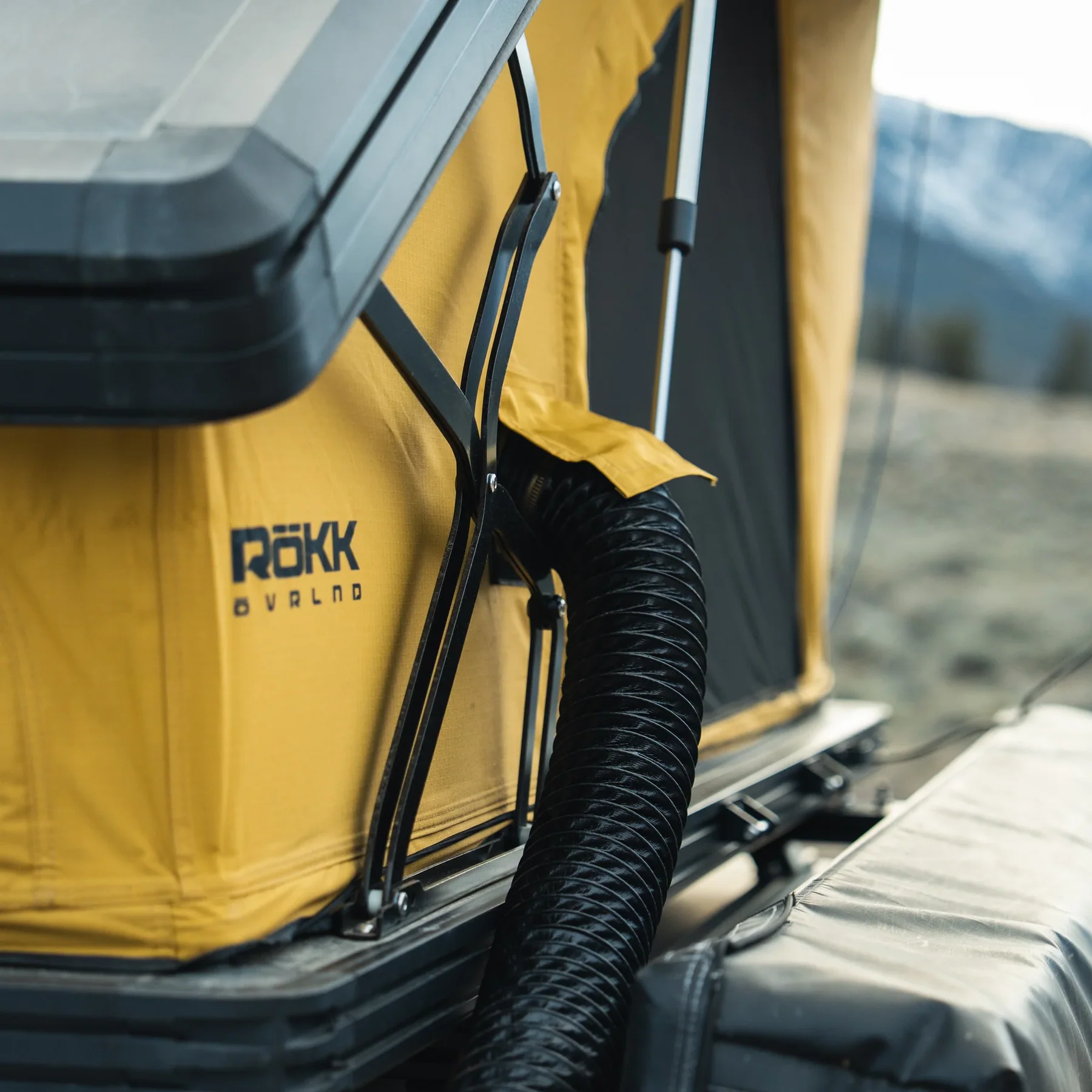

Pick the 4kW class for a ground tent, a rooftop tent, or genuine sub-zero use where the temperature multiplier doubles your load. A bare metal shell and a 12 by 14 wall tent both sit at or beyond its ceiling. For those two, insulation or a wood stove comes first. Below those conditions, a 2kW diesel heater wins on comfort, fuel, noise and burner life.

The class you pick maps to a short list of real units. Budget clones cluster in the 4kW band regardless of the label on the box. For practical purposes a true 2kW purchase usually means a name brand.

Fuel Burn and Battery Draw by Size

Sizing decisions follow you into the electrical system. Startup fires the glow plug at 100 to 120 W, roughly 8 to 10 A at 12V, for 1 to 3 minutes. After ignition the draw falls by roughly 90%. Therefore, wire and fuse for the startup figure, then size battery capacity for the running figure.

The spread at the top of the table matters overnight. An Espar S2 cycling on low pulls about 12 Ah across 24 hours, a rounding error on a 100 Ah bank. A Webasto Evo 55 held on boost pulls 10.8 A, draining 130 Ah in 12 hours. Because winter solar harvest is poor, the gap decides whether you wake up with power. Our guide to sizing your solar setup covers the recharge side.

Final Verdict on Diesel Heater Sizing

For insulated vans, truck campers, teardrops and canopies, the 2kW class is the correct choice for diesel heater sizing, and it is still slightly oversized. Its 850 to 900 W floor lands within a few hundred BTU of what a well-built van loses at 20°F. No 12V unit gets closer. Buyers reaching for 5kW or 8kW labels are not buying headroom. They are buying shutdown cycles and soot.

The trade-off is real at the edges. A 12 by 14 canvas wall tent losing roughly 25,000 BTU/hr by the calculation above needs a wood stove rather than any 12V unit. Similarly, ground tents and rooftop tents land in 4kW territory, because fabric resists heat loss about as well as still air does. A bare metal shell sits at the 4kW ceiling, so insulation beats a bigger heater there. Anyone camping below zero should apply the temperature multiplier first.

What Diesel Heater Sizing Costs

On value, the clone market removes the usual penalty for choosing correctly, and it also removes the choice. Clones sell in the 3.3 to 4.6 kW band whatever the label says. Prices ran about $115 to $235 in August 2026. Notably, the top of the range reflected a promotional discount at the time of checking. A genuine 2kW means a name brand. Expect roughly $989 for an Espar Airtronic S3 D2L heater and pump. Similarly, a complete Webasto Air Top 2000 STC kit ran $1,231 to $1,965 at the same date. Those prices buy documented minimum outputs, published altitude limits and parts availability.

Start with the shelter row in the table, apply your temperature multiplier, then buy the smallest class whose ceiling clears the result. If two classes both clear it, take the smaller one. For readers still choosing a fuel type, our comparison of a diesel heater for van use against propane and electric is the right starting point.

Diesel Heater Sizing FAQ

What size diesel heater do I need?

Calculate your shelter’s heat loss at a 40°F difference, then pick the smallest class whose maximum output clears it. For an insulated van, truck camper, teardrop, canopy or travel trailer, the 2kW class covers the load. Ground tents and rooftop tents need 4kW. A wall tent needs a wood stove, and a bare metal shell needs insulation before it needs a heater.

How many BTU is a 5kW diesel heater?

A genuine 5kW heater puts out about 17,060 BTU/hr, using the fixed conversion of 3,412 BTU per kilowatt. Most units labeled 5kW deliver less, because their published fuel rate caps the calculated ceiling near 4.6 kW.

Is an 8kW diesel heater worth the extra money?

Rarely, because there is barely any extra money involved. Sellers publish fuel rates between 0.24 and 0.51 L/hr on “8kW” units, capping calculated output between 2.2 and 4.6 kW. The label buys you a number rather than output.

How much fuel does a diesel heater use per hour?

Expect 0.10 to 0.12 L/hr on low and 0.24 to 0.28 L/hr at full output for the 2kW class. The 4kW class climbs to 0.51 L/hr and the 5kW class to 0.67. Therefore a 5 gallon jug lasts 37 hours and 28 hours respectively, instead of 68.

Will a 2kW unit heat a canvas wall tent?

No. A 12 by 14 wall tent loses roughly 25,000 BTU/hr at a 40°F difference, well beyond the 7,500 BTU/hr ceiling of the 2kW class. Choose a wood stove, or heat a smaller sleeping area inside the tent.
