GMC Hummer X Concept: Could It Out-Crawl the TRD Pro and Rubicon?

 7 min read

GMC Hummer X Concept Overview

First, GM revealed the GMC Hummer X concept as two separate machines: a midsize pickup and a midsize SUV. Both wear aggressive off-road numbers, and GM aimed both squarely at the trucks you already wheel. The reveal happened in May 2026 at the company’s new advanced design studio in Pasadena, California, as first detailed by TFLtruck.

If you shop the Toyota Tacoma TRD Pro, the Jeep Gladiator Rubicon, or the Ford Bronco Raptor, these concepts land in your lane. The truck runs true midsize dimensions. The SUV trims the wheelbase further and pushes its angles into Bronco Raptor territory. Above all, GM published hard figures instead of vague promises, so the comparison starts on real ground.

Pricing has not been announced, because neither vehicle has a confirmed production date. Still, the spec sheet gives off-road buyers plenty to chew on. For a weekend wheeler picking trail lines through the backcountry, these angles matter more than any horsepower headline.

Hummer X Specs at a Glance

GM listed dimensions and off-road geometry for each vehicle. Specifically, the numbers below pull straight from the reveal. Notably, the SUV posts the steeper angles, while the truck keeps a longer bed-friendly wheelbase.

Specification	Hummer X Truck	Hummer X SUV
Wheelbase	130.7 in (3318.6 mm)	116 in (2945.5 mm)
Length	207.3 in (5264.5 mm)	188.3 in (4782.5 mm)
Height	73.0 in (1854.4 mm)	72.9 in (1852.6 mm)
Width	80 in (2032 mm)	80 in (2032 mm)
Approach angle	41.5 degrees	44 degrees
Departure angle	29.7 degrees	46 degrees
Breakover angle	24.9 degrees	30.9 degrees
Ground clearance	12.5 in (316.7 mm)	13.2 in (334.3 mm)
Tires (Goodyear)	35 in OD	37 in OD

These Hummer X specs read like a wheeler’s wish list. For reference, GM also confirmed the truck rides on a wheelbase only 0.7 inches shorter than the current Chevy Colorado and GMC Canyon. As a result, the X truck slots into the same garage footprint as the trucks it targets.

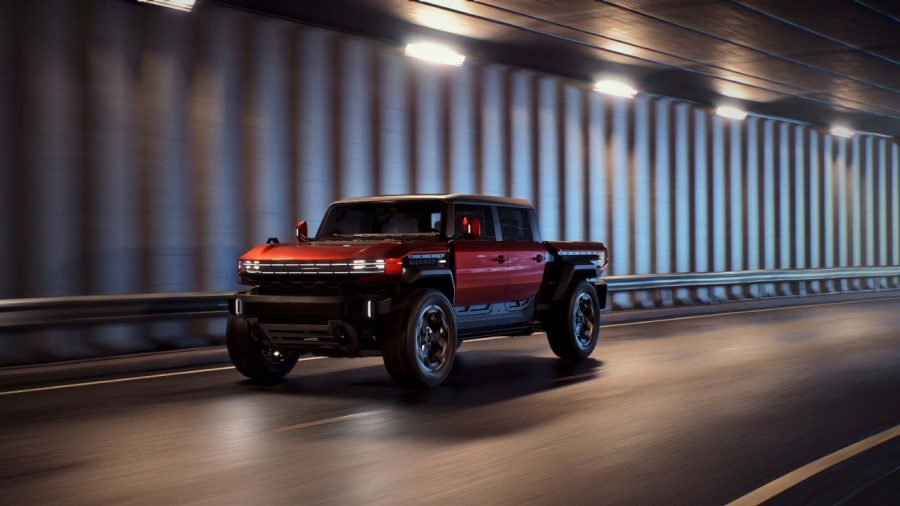

The Hummer X Truck: Midsize at Last

The headline for the GMC Hummer X concept truck is size. Unlike the current production Hummer EV pickup, this concept shrinks to true midsize dimensions. Its 130.7-inch wheelbase trails the Colorado and Canyon by less than an inch, so it parks and trails like a normal midsize rig.

The diet pays off on the trail. GM claims the X truck’s off-road geometry beats both a Toyota Tacoma TRD Pro and a Jeep Gladiator Rubicon. With a 41.5-degree approach angle and 12.5 inches of ground clearance, the concept clears obstacles the current Hummer EV would drag across.

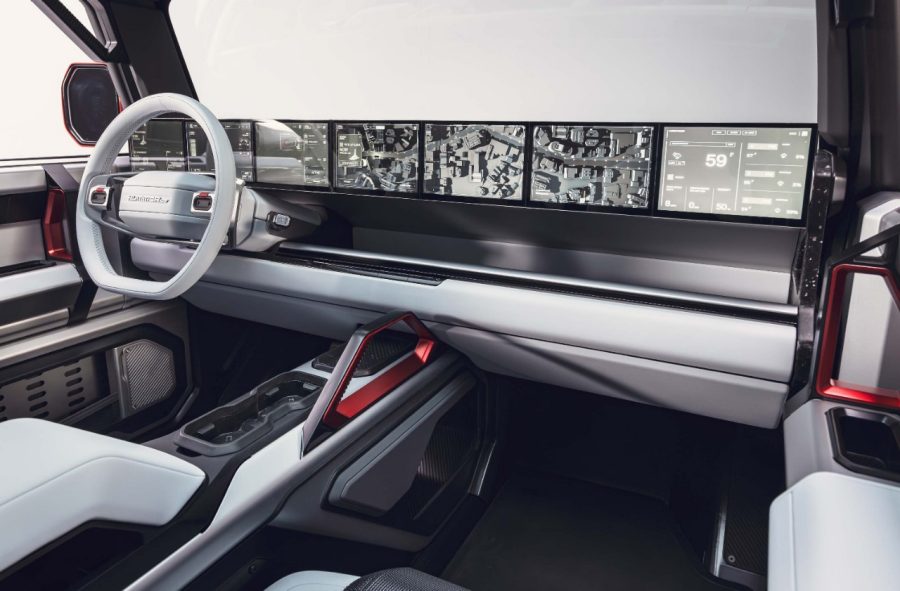

For tires, the Hummer X truck rolls on 35-inch Goodyear all-terrains in its street setup, with a taller rock-crawl size listed for the lineup. In addition, GM paired the hardware with a stripped, control-first interior aimed at trail use. As a result, for overlanders planning a midsize electric truck build, the bed and cab proportions look genuinely useful instead of show-floor fantasy.

The Hummer X SUV: A Bronco Raptor Rival

The GMC Hummer X concept SUV trades bed length for break-over clearance. Its 116-inch wheelbase is far shorter than the truck’s, and the payoff shows in the angles. The SUV posts a 44-degree approach, a 46-degree departure, and a 30.9-degree breakover.

Notably, those figures sit close to a Ford Bronco Raptor, which has long set the midsize off-road SUV benchmark. The Hummer X SUV also clears 13.2 inches of ground and wears 37-inch Goodyear rubber from the factory floor. For technical rock work, a 46-degree departure angle is the kind of number serious wheelers chase.

GM left one door open on purpose. The company would not confirm whether the Hummer X SUV concept hints at the rumored GMC Jimmy off-road SUV. Because GMC stayed quiet on the link, the SUV’s exact production identity is still unknown. The hardware, however, looks ready for the dirt.

Electric Power and the Production Question

Both Hummer X concepts are EVs. GM described them as electric vehicles with a relatively low center of gravity, a real trail advantage for stability on off-camber lines. The company did not share battery size, range, or output, so the powertrain story stays incomplete for now.

GM also used the reveal to showcase its new FLEX FAB manufacturing technique and the fresh Pasadena design studio. Therefore, the project doubles as a technology demonstrator, not only a vehicle reveal. GMC says the Hummer X concepts are meant for production. Still, the company tempered the claim by noting the design language, interior features, and off-road specs are likely to surface across future GM trucks and SUVs first.

For a buyer comparing a midsize electric truck against gas rivals, the missing range figure is the biggest open question. Until GM publishes battery and efficiency numbers, the trail math stays theoretical. The geometry, by contrast, is already on the record.

GMC Hummer X Concept vs. the Off-Road Establishment

The most useful way to read these concepts is against the trucks already in driveways. GM invited the comparison directly, so here is how the angles stack up. The competitor figures below come from each manufacturer’s published off-road specs.

Model	Approach	Departure	Breakover	Clearance
Hummer X SUV	44.0°	46.0°	30.9°	13.2 in
Hummer X Truck	41.5°	29.7°	24.9°	12.5 in
Ford Bronco Raptor	47.2°	40.5°	30.8°	13.1 in
Jeep Gladiator Rubicon	43.4°	26.0°	20.3°	11.1 in
Toyota Tacoma TRD Pro	33.8°	25.7°	23.5°	9.5 in

On paper, the Hummer X SUV matches or beats the Bronco Raptor everywhere except approach angle. Compared to the Gladiator Rubicon, the SUV’s breakover advantage is large, which helps on tall ledges. The truck, meanwhile, clears both the Tacoma TRD Pro and the Rubicon on ground clearance and breakover.

Numbers are not the whole story, though. A concept has no proven articulation, no real-world tire wear, and no confirmed locker setup. So treat these wins as a strong opening hand rather than a finished round. If you want today’s proven hardware, the 2025 Ford Bronco Raptor and the Toyota Tacoma TRD Pro remain the trucks to beat.

Final Verdict

The GMC Hummer X concept is built for the off-road buyer who wants midsize size with full-size attitude. Its biggest strength is geometry. Both the truck and the SUV post approach, departure, and breakover angles in the same conversation as the Bronco Raptor and well ahead of the Tacoma TRD Pro on several measures.

The trade-offs are real, however. GM has not confirmed range, price, locker hardware, or a production date. So anyone shopping this year should look elsewhere for now. A concept reveal is a promise, and promises do not crawl rocks.

On value, the story stays open until GM puts a window sticker on these trucks. For context, the hardware suggests a premium position, in line with the Hummer EV badge. Smart buyers will wait for confirmed specs before getting attached.

For my money, I have never wheeled a GMC Hummer, but this thing would be an absolute blast to go rip around the backcountry. If GM ships even 80 percent of these angles, the midsize off-road class gets a new heavyweight. Until then, a proven rig like the Jeep Gladiator off-road features package earns the money today. For broader options, see our list of the best overland vehicles for 2026.

Frequently Asked Questions

Is the GMC Hummer X going into production?

GM says the Hummer X concepts are meant for production. The company set no firm date, though, and expects the design language and off-road specs to appear on future GM trucks and SUVs first. Treat production as planned but unconfirmed.

How does the Hummer X compare to the Jeep Gladiator Rubicon?

The Hummer X truck beats the Gladiator Rubicon on ground clearance and breakover angle, according to GM’s published figures. Both wear similar approach numbers. The Rubicon, however, ships today with proven solid axles and lockers, while the Hummer X stays a concept.

What are the approach, departure, and breakover angles?

The Hummer X SUV posts 44 degrees approach, 46 degrees departure, and 30.9 degrees breakover. The Hummer X truck lists 41.5, 29.7, and 24.9 degrees in the same order. Both ride high, with 13.2 and 12.5 inches of clearance.

What size tires does the GMC Hummer X concept run?

The Hummer X truck rolls on 35-inch Goodyear tires, while the SUV steps up to 37-inch Goodyear rubber. GM also listed a taller rock-crawl tire option for the truck setup. Both vehicles use Goodyear off-road designs.

Is the GMC Hummer X a real Tacoma TRD Pro killer?

On paper, the Hummer X tops the Tacoma TRD Pro on ground clearance and breakover angle. Real-world wheeling needs proven articulation, lockers, and durability, none of which a concept has shown yet. So the “killer” label stays a strong claim, not a verdict.

Is the Hummer X SUV the rumored GMC Jimmy?

GMC would not confirm any link between the Hummer X SUV concept and the rumored GMC Jimmy off-road SUV. The company stayed silent when asked. For now, the SUV’s production identity remains unknown.
