ROKK OVRLNDR 2P Hard Shell Rooftop Tent Review (Hands-On)

A couple weeks ago, I flew from California up to Castle Rock, Colorado, to meet up with the folks at Spirit of 1876, since they carry one of the largest rooftop tent selections I’ve seen anywhere in one place. The tent I most wanted to put my hands on was the ROKK Overland OVRLNDR 2P, a hard shell wedge style rooftop tent with X-Brace pivoting hardware. Its design caught my eye because it promises something most clamshell hard shell rooftop tent builds do not deliver: 13 inches of foot clearance without sacrificing a slim closed profile.

This rooftop tent review is a hands-on look at the OVRLNDR 2P based on a day at the Spirit of 1876 warehouse, with spec-and-price reference points against the iKamper BDV Duo and Roofnest Falcon 3 EVO Air. At the time of this writing, this rooftop tent hard shell was on sale at Spirit of 1876, sitting in the mid-tier of clamshell options.

OVRLNDR 2P Overview: Who This Tent Is For

The ROKK Overland OVRLNDR 2P is built for overlanders who push their rigs hard in cold, wet, and high-altitude conditions. ROKK tests every component in the Colorado high country, and the design reflects those Rocky Mountain roots. Instead of a traditional clamshell hinge, the OVRLNDR uses X-Brace pivoting technology, which produces a flatter closed profile and more usable height when the shell is open.

Compared to soft-shell rooftop tents in the same 2 person rooftop tent category, the OVRLNDR 2P trades pack-down volume for weather protection and quick deploy. The 280g rip-stop canvas body and 420D Oxford rain fly handle wind-driven rain without flapping, and the 3.5-inch diesel heater hose inlet port lets you run a cabin heater in below-freezing temperatures. For example, if you’re heading to Moab in March or the San Juans in October, this is the build you want overhead.

The OVRLNDR 2P sits between the iKamper BDV Duo at $2,995 and the Roofnest Falcon 3 EVO Air at $3,795, undercutting both clamshell-class competitors while keeping the X-Brace foot clearance advantage. Shoppers hunting the best hard shell rooftop tent under $3,000, especially anyone new to overlanding, should put the OVRLNDR 2P on the short list.

OVRLNDR 2P Specs at a Glance

Specification	Details
Sleep Capacity	2 person
Sleeping Area	79.5 in. x 48.5 in. x 55 in.
Closed Dimensions	85.5 in. x 51 in. x 8 in.
Open Dimensions	102 in. x 76 in. x 56 in.
Tent Weight	149 lbs
Load Bar Capacity	70 lbs
Mattress	2.5 in. high-density foam
Shell Material	Honeycomb aluminum hardshell
Tent Body Fabric	280g rip-stop canvas
Rain Fly	420D Oxford
Foot Clearance	13 in. (X-Brace pivoting)
Heater Port	3.5 in. diesel heater hose inlet
Lighting	Multi-color LED light bar (USB)
Storage Pockets	4 small + 6 large overhead
Warranty	3-year limited
Sale Price (Spirit of 1876)	Check Current Sale Price Below

OVRLNDR 2P Build Quality and Materials: Where It Earns Its Price

Build quality is the strongest argument for the OVRLNDR 2P, and on the showroom floor the design and hardware materials struck me as fantastic. Visually, this tents choice of colors and design is a huge home run. First, the honeycomb aluminum shell is rigid yet manageable at 149 pounds. The 85.5 by 51 inch closed footprint mounts on a 4Runner or midsize truck without dominating the roofline. Second, the 280g rip-stop canvas is a heavy-duty body fabric. Heavier canvas resists abrasion from branches and holds up across repeated stuff-and-pack cycles.

Third, the 420D Oxford rain fly is a heavy-denier weave. During my visit to Spirit of 1876, the staff demonstrated the rain fly tension on a fully deployed unit, and the panels held a tight pitch with no flutter.

X-Brace Hardware and Load Capacity

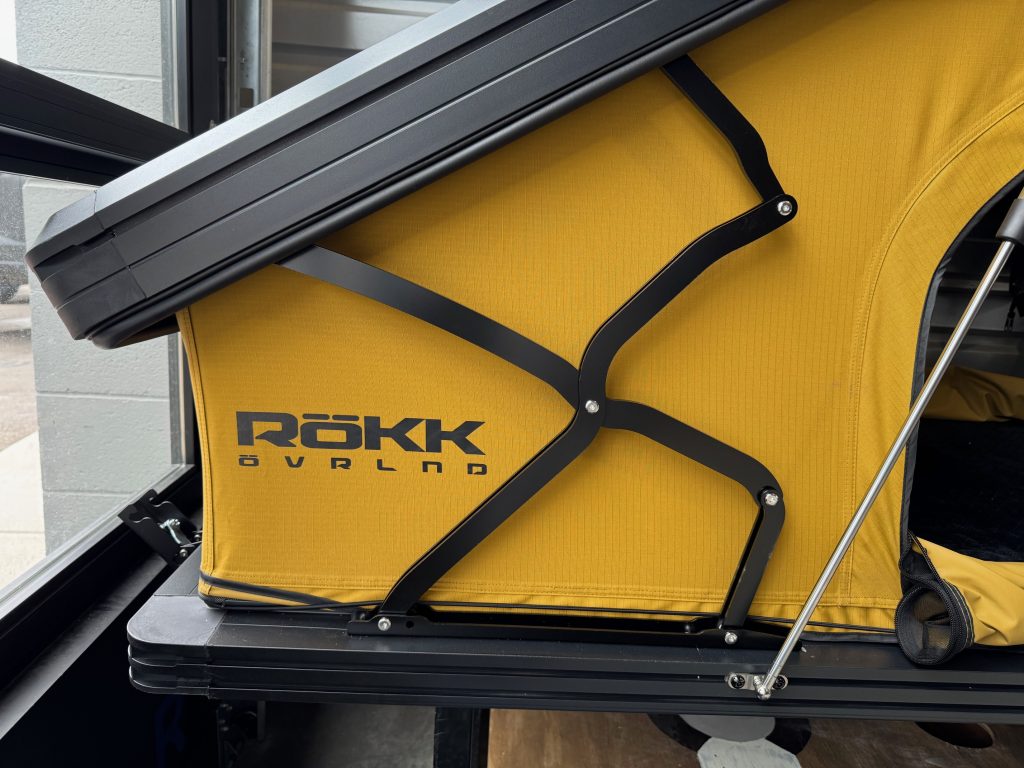

The X-Brace pivoting mechanism is the core engineering story of the OVRLNDR. Instead of pivoting on a single hinge axis like a clamshell, the tent uses crossed support arms which lift both ends simultaneously. As a result, you get 13 inches of foot clearance, which is more than a traditional single-hinge clamshell delivers at the foot end, transforming otherwise useless space into very usable space! The hardware itself is anodized aluminum with stainless fasteners, resisting corrosion in salt-air or humid climates.

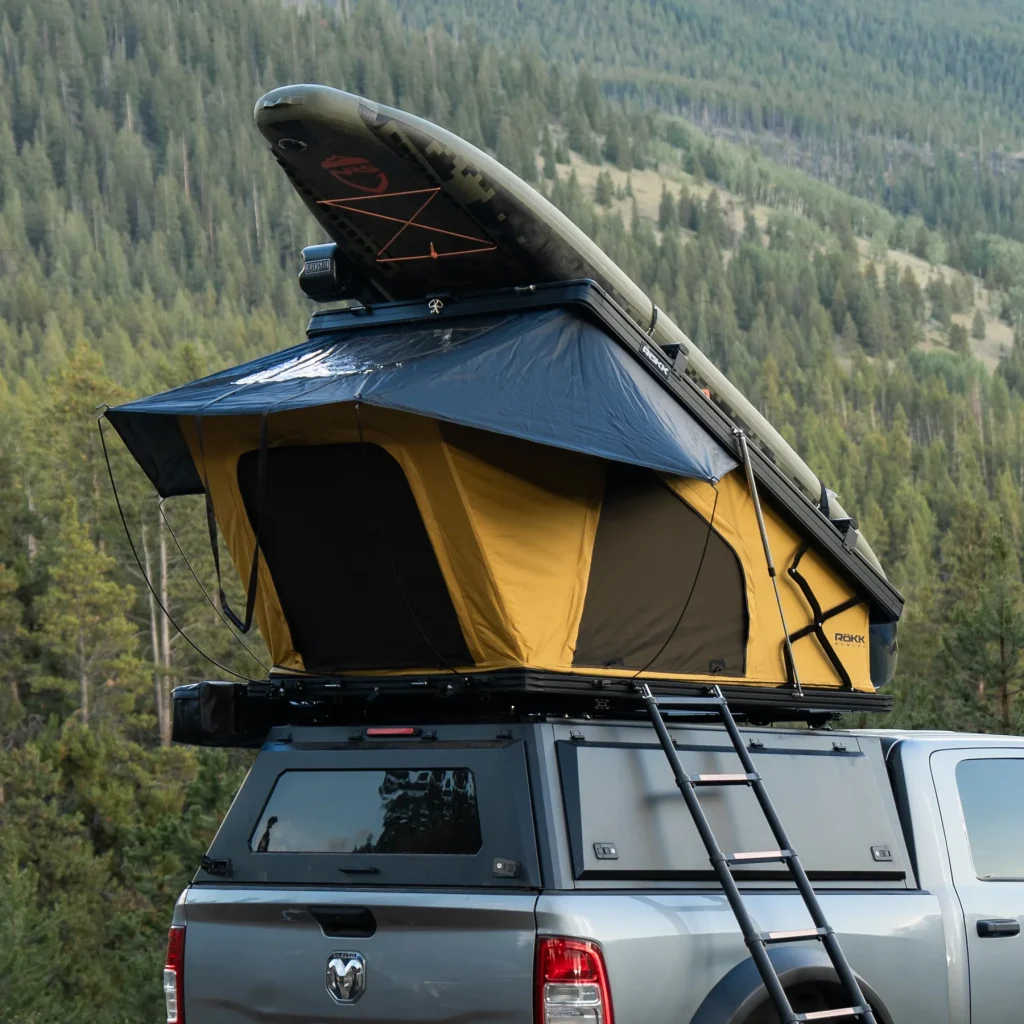

One spec to flag: the 70 pound load bar capacity. Although the bars are useful for kayaks, awnings, or solar panels, keep total accessory weight below this ceiling and check each accessory’s spec sheet before stacking.

OVRLNDR 2P Setup and Teardown: How Fast It Opens

On the showroom floor, the OVRLNDR 2P took about 90 seconds to deploy and slightly more time to put away. After releasing a couple of latches on both ends, the X-Brace pivoting system raises the canopy. Notably, quick deploy is one of the main reasons buyers choose a hardshell, and the OVRLNDR earns the marketing claim.

Teardown takes slightly longer than setup because the canvas needs to tuck inside the shell along pre-creased fold lines. Once the canvas is squared away, the rear latches click closed.

One person handles setup as long as the rig is parked level. Notably, the ladder is not attached to the shell. After the canopy is open, you place the ladder inside the tent and pull it back out for use. Load bars, shoe bags, LED light bar, rain fly rods, mattress, condensation mat, and mounting hardware also ship in the box per the ROKK product listing.

OVRLNDR 2P Interior Space and Comfort

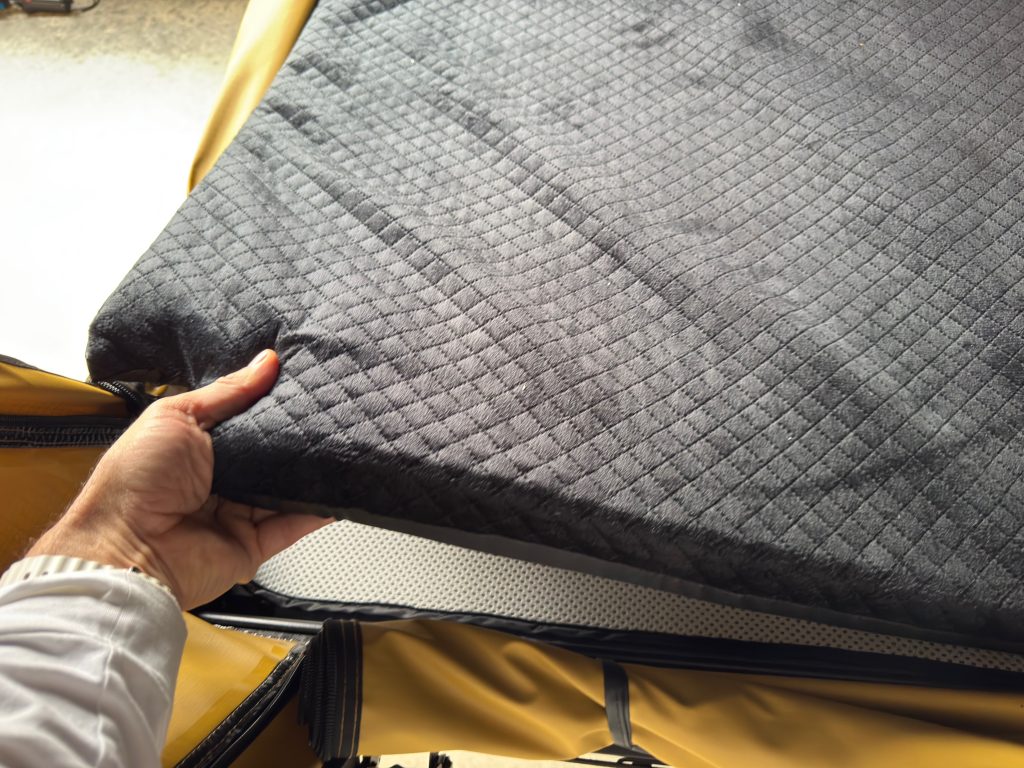

The 79.5 by 48.5 inch sleeping area gives two adults roughly the same footprint as a queen mattress trimmed by 11 inches in width. For sleepers up to 6-foot-3, the length is generous. However, two side-sleepers above 6 feet will feel the width pinch, similar to most 2 person rooftop tent shells in this class. Sitting on the 2.5-inch high-density foam mattress at the showroom, I found it okay; for its thickness, it is reasonably comfortable.

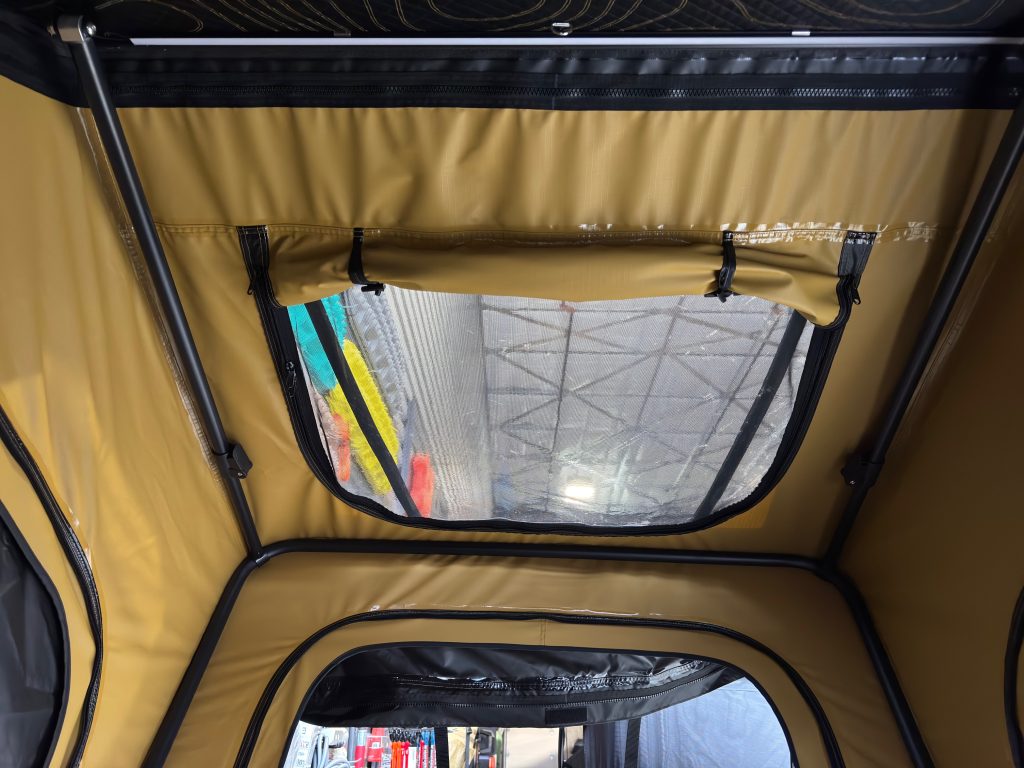

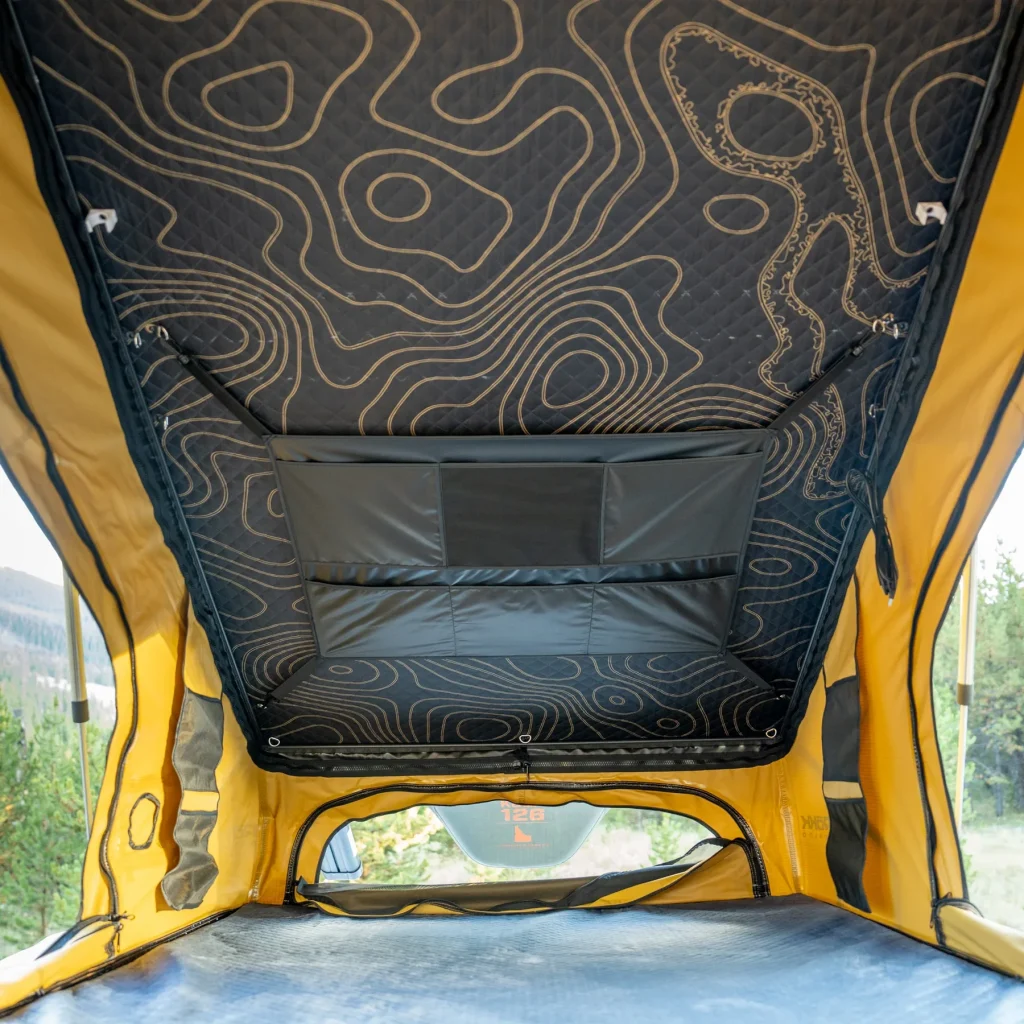

The interior design has a swanky feel. Again, I think their choice of colors on this tent was spot on. Above your head, the U-bar arch over the entrance creates 56 inches of standing height at the peak, which is enough to sit upright cross-legged or change pants without hunching. Notably, the stargazing window above the bed unzips fully to expose mesh, so you sleep with airflow and a sky view on clear nights. Four small pockets and six larger overhead pockets keep headlamps, phones, and water bottles off the mattress.

Cold-Weather and Year-Round Use

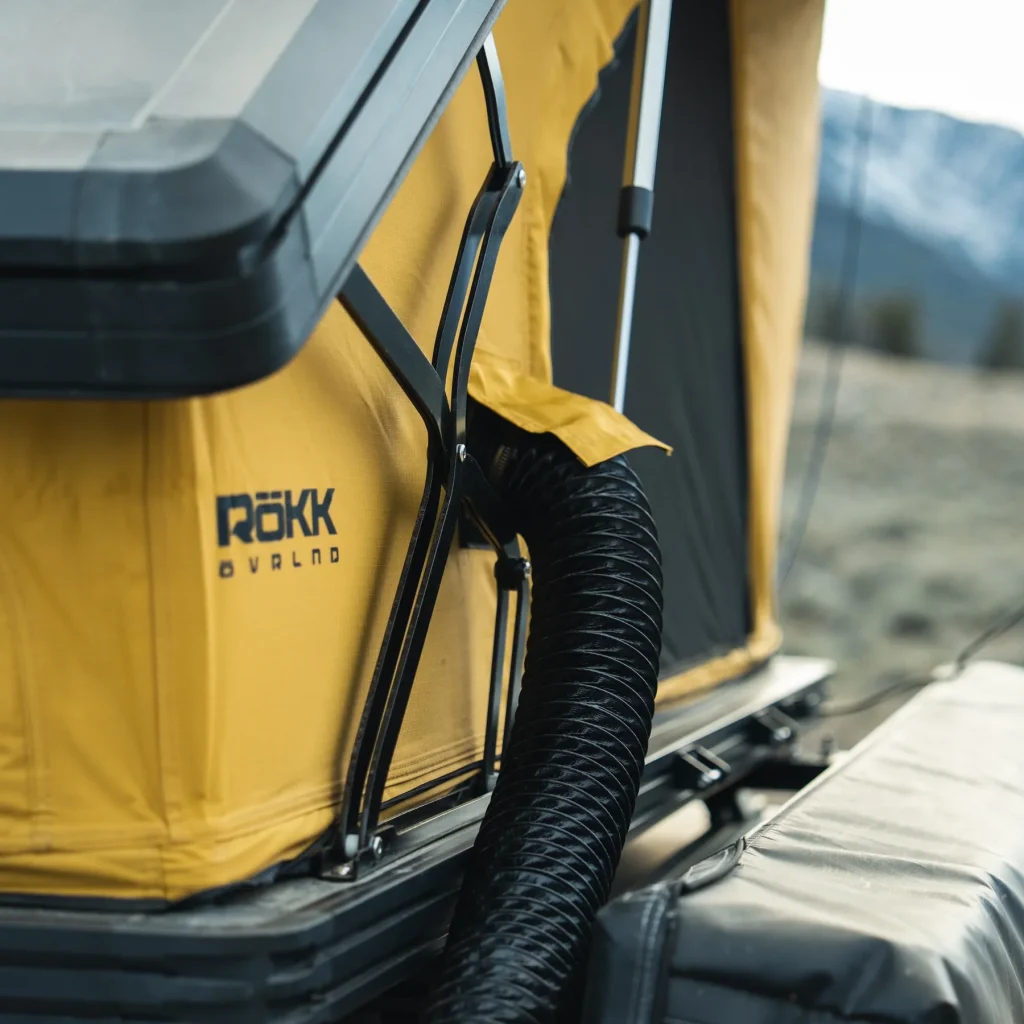

The 3.5-inch diesel heater hose inlet port is the spec earning the 4-season label, and the size of the port is a nice touch from ROKK. The small space like this, it doesn’t take much. A 2 kW diesel heater will be more than plenty. With a compatible diesel cabin heater, you push warm air into the tent without leaving a window unzipped. Therefore, you maintain weather seal and skip the cold-air leak from a cracked window. For overlanders chasing snow trails or shoulder-season backcountry, this build is purpose-designed for cold conditions.

Why I Recommend Seeing the OVRLNDR 2P at Spirit of 1876

If you live anywhere near the Front Range, you owe it to yourself to drive down to Castle Rock and spend an hour at Spirit of 1876 before pulling the trigger on a rooftop tent. The shop sits in the south Denver corridor and stocks an unusually deep bench of overland shelters, including hardshells from ROKK, 23Zero, Roof Space, Inspired Overland, and James Baroud. This rooftop tent review is grounded in what I saw on their warehouse showroom floor, not in field camping with the OVRLNDR 2P.

The reason this matters: a rooftop tent is a $2,000-plus decision, and product photos do not tell you how the latches feel when they click closed, how the canvas stitching looks at the seams, or how the ladder behaves when you set it up. On my visit, I opened and closed the OVRLNDR 2P, climbed in, sat on the mattress, and walked through several other tents back-to-back to get a feel for the build.

Even if the OVRLNDR turns out not to be your tent, Spirit of 1876 carries enough other options to send you home with a much sharper sense of what you want in a hard shell rooftop tent. For first-time buyers especially, this level of in-person comparison is worth the gas money.

OVRLNDR 2P Pros and Cons

Final Thoughts on the OVRLNDR 2P

The ROKK Overland OVRLNDR 2P earns its place as a serious option in the mid-tier hard shell rooftop tent segment. For the overlander who wants Colorado-built durability, 4-season capability, and a roughly 90-second deploy, this is a compelling 2 person rooftop tent at the sub $3000 price point. The X-Brace design solves the foot-clearance gripe most clamshell owners share, and the 280g canvas plus 420D rain fly combo handles real weather instead of fair-weekend camping.

However, the trade-offs are honest. For starters, the 48.5-inch sleeping width could be tight for two side-sleeping adults above 6 feet. Additionally, the 70 pound load bar limit gets tight quickly if your build leans gear-heavy with cargo boxes, kayaks, or solar panels on top of the shell. Plan accordingly and check the rooftop accessory ceilings on your rig before stacking.

On value, the math works for most buyers. Considering the sale price through Spirit of 1876, you save real money off the MSRP, which then can be used on other gear. Spirit of 1876 also backs the purchase with hands-on service and Affirm financing from $91 per month, which softens the upfront hit.

For most readers, the OVRLNDR 2P is a very strong pick if you want the best hard shell rooftop tent under 150 pounds. The X-Brace foot clearance, the 4-season heater port, and the Spirit of 1876 backing make it a confident buy.

OVRLNDR 2P Frequently Asked Questions

How much does the ROKK Overland OVRLNDR 2P weigh?

The OVRLNDR 2P weighs 149 pounds with the honeycomb aluminum shell, mattress, ladder, and rain fly included. At this weight, the shell stays manageable for one-person setup on level ground, but a second set of hands helps if your rig sits high or you are loading on uneven terrain.

Will the OVRLNDR 2P fit my vehicle?

The 85.5 by 51 inch closed shell mounts on most midsize trucks, full-size SUVs, and 4Runners using factory or aftermarket crossbars. Confirm your roof rack’s static load rating supports the 149-pound shell plus mounting hardware before ordering, especially for smaller rigs such as a Subaru Outback with stock rails.

Is this a 4-season hard shell rooftop tent?

Yes. The OVRLNDR 2P is rated for 4-season use thanks to the 280g rip-stop canvas, 420D Oxford rain fly, and a 3.5-inch diesel heater port. Notably, the heater port lets you run a 2-kW diesel heater without leaving a window unzipped, so sub-freezing nights stay livable.

Where should I buy the OVRLNDR 2P?

Spirit of 1876 in Castle Rock, Colorado is the recommended dealer for hands-on service and an in-person walkthrough. They stock the tent, offer Affirm financing from $91 per month, and the showroom carries multiple competing hardshells side-by-side. For online-only buyers, the same retailer ships nationwide.

What is X-Brace pivoting technology?

X-Brace pivoting is the OVRLNDR’s lift mechanism. Instead of a single-axis clamshell hinge, the design uses crossed support arms which raise both ends of the shell together. As a result, you get 13 inches of foot clearance, more than a typical rooftop tent hard shell on a single-hinge clamshell delivers at the foot end of the cabin.
