The 10 Most Reliable Overlanding Engines: A Real-World Ranking

 9 min read

Most Reliable Overlanding Engines: Why the Engine Comes First

The most reliable overlanding engines share three traits: simple architecture, decades of production, and parts you find on every continent. When your truck strands you 200 miles from pavement, the engine matters more than the suspension or the rooftop tent. For this reason, seasoned overlanders pick the platform around the motor first.

This ranking pulls from Expedition Portal threads, IH8MUD forums, Reddit’s r/overlanding community, Overland Bound owner reports, and teardown evidence from independent rebuilders. Every engine listed has documented examples crossing 300,000 miles in field service. Several have also crossed one million.

However, the list spans both diesel and gas options, both classic and modern. Diesel dominates the top spots because mechanical injection systems survive bad fuel, deep water, and isolation from dealer networks. Modern gas engines like the Toyota 2UZ-FE also earn their place, especially in the US where diesel parts and fuel quality matter less.

If diesel and gas trade-offs remain open for you, the diesel vs gas overlanding comparison covers the fuel-type debate in depth before you commit. Additionally, picking the best overlanding truck starts with the engine choice rather than the trim package.

The Most Reliable Overlanding Engines at a Glance

Engine	Type	Years	Documented Lifespan
Toyota 1HZ 4.2L	Inline-6 Diesel	1990-2007	1,000,000+ km
Cummins 5.9 12V (6BT)	Inline-6 Diesel	1989-1998	500,000+ mi
Ford 7.3L Power Stroke	V8 Diesel	1994.5-2003	500,000+ mi
Toyota 2UZ-FE 4.7L	V8 Gas	1998-2011	300,000+ mi
Toyota 1FZ-FE 4.5L	Inline-6 Gas	1992-2007	300,000-400,000 mi
Toyota 22R-E 2.4L	Inline-4 Gas	1985-1995	300,000-1,000,000 mi
Mercedes OM617/OM606	Inline-5/6 Diesel	1974-2001	500,000+ mi
Land Rover 300TDI 2.5L	Inline-4 Diesel	1994-2001	350,000+ km
Jeep 4.0L AMC	Inline-6 Gas	1987-2006	300,000+ mi
Toyota 1GR-FE 4.0L	V6 Gas	2003-present	200,000+ mi

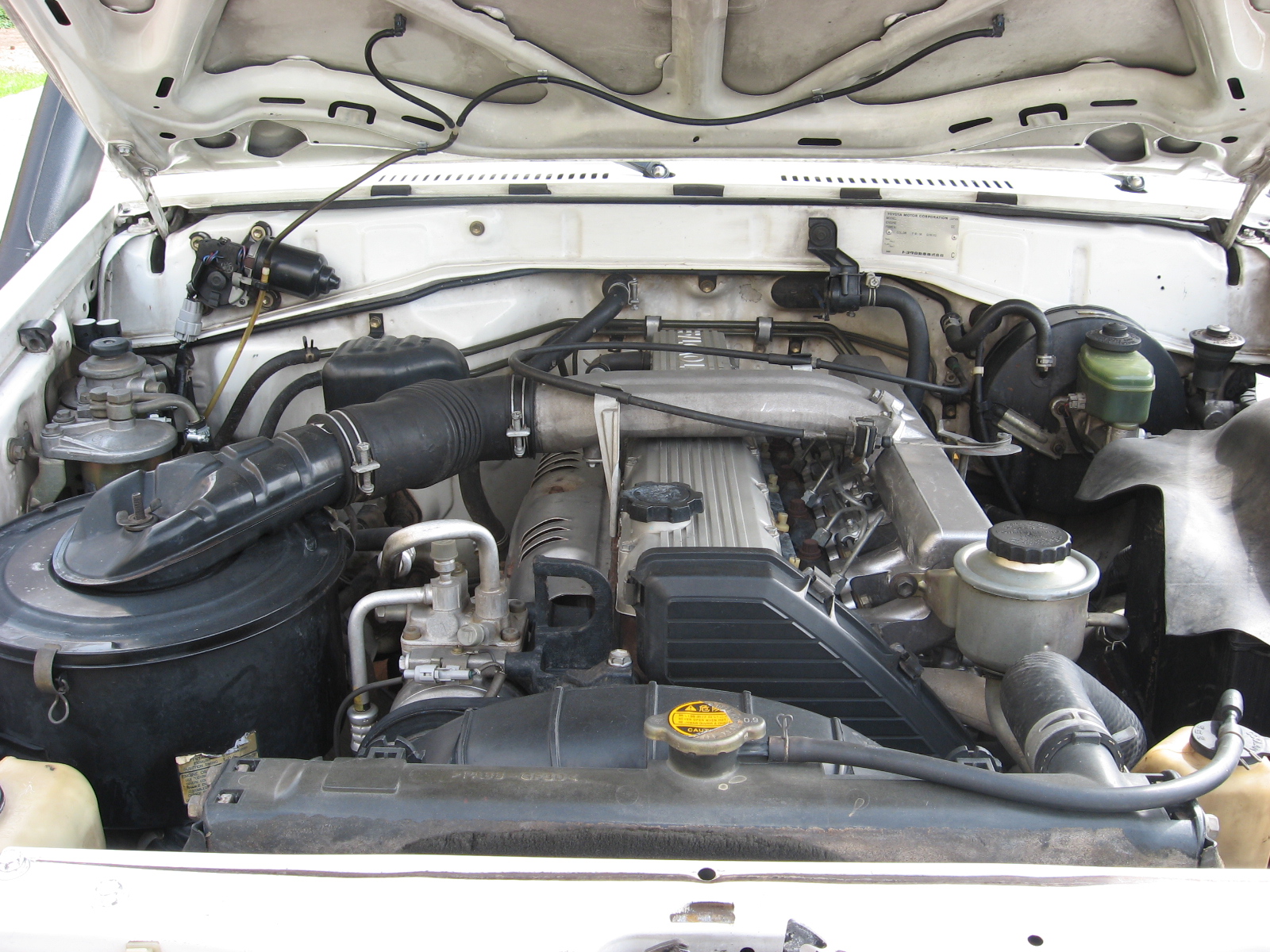

1. Toyota 1HZ: The Most Reliable Overlanding Diesel

The Toyota 1HZ sits at the top of every global ranking for one reason: it works everywhere. This 4.2-liter inline-six produces 129 horsepower and 209 pound-feet of torque. However, the cast-iron block, forged crankshaft, and mechanical indirect injection ignore the constraints hobbling newer diesels. Specifically, the engine carries no DPF, no EGR, and zero electronics in the fuel system.

Toyota fitted the 1HZ to the Land Cruiser 70 Series and 80 Series HZJ models from 1990 onward. Also, the engine still appears in select 70 Series export markets. Owners worldwide nicknamed it the “Million Kilometer Motor” because rebuild-free service past 1,000,000 km is documented across Africa, Australia, and South America. In addition, parts move freely through Toyota dealers on every continent.

For remote expedition use, no other engine matches the 1HZ. Top speed near 85 mph and fuel economy around 22 mpg are the real trade-offs. As a result, if global parts availability is your priority, buy the platform around this motor. Specifically, the HZJ80 Land Cruiser delivers the most reliable truck engine package overlanders rely on for cross-continental travel.

2. Cummins 5.9L 12-Valve: A Million-Mile Reliable Diesel

The 1989-1998 Cummins 5.9L 12-Valve is the diesel North American overlanders swear by. Specifically, the cast-iron block and head, mechanical Bosch P7100 injection pump (in 1994-1998 trucks), and zero electronics in the fuel system create a workhorse the modern Cummins ISB and 6.7 cannot match. Driving Line and 4BT Engines both call it the gold standard for million-mile durability.

Power ranges from 160 to 215 horsepower with 400 to 440 pound-feet of torque depending on year. Real-world overlanding builds running 35-inch tires and rooftop tents see 17 to 20 mpg loaded. However, the factory NV4500 manual transmission is the weakest link. As a result, most owners upgrade clutches or swap to the heavier 47RE automatic.

The one weakness is the “killer dowel pin” on 1989-1998 12-Valve trucks, one tap shy of catastrophic failure if it walks loose. Fix it for $25 in parts during your first weekend. Afterward, drive the truck forever. For comparable performance with global parts support, the 1HZ still wins; for North American payload duty, this is the most reliable diesel engine choice.

3. Ford 7.3L Power Stroke

Ford’s 7.3L Power Stroke, built by Navistar from 1994.5 through 2003, earns its overlanding reputation through forged rods, a heavy iron block, and HEUI injection tolerant of poor fuel. Owners on the Overland Bound forum report fleet trucks crossing one million miles. Notably, those fleet trucks needed only one transmission and one set of injectors across the entire run. Also, the Driving Line analysis calls the 7.3L the most reliable Power Stroke ever built.

Power ratings spanned 210 to 275 horsepower and 425 to 525 pound-feet of torque. Consequently, the engine handles heavy expedition rigs hauling slide-in campers without strain. Fuel economy lands at 15 to 17 mpg, mediocre by modern standards but acceptable for the cargo capacity.

Common weak points include cam position sensor (CPS) failures and the IPR/ICP injection pressure sensors. Carry spares. Otherwise, the 7.3L runs as long as you keep oil clean and fuel filtered. Additionally, adding a secondary fuel filter for remote travel stretches injector life further.

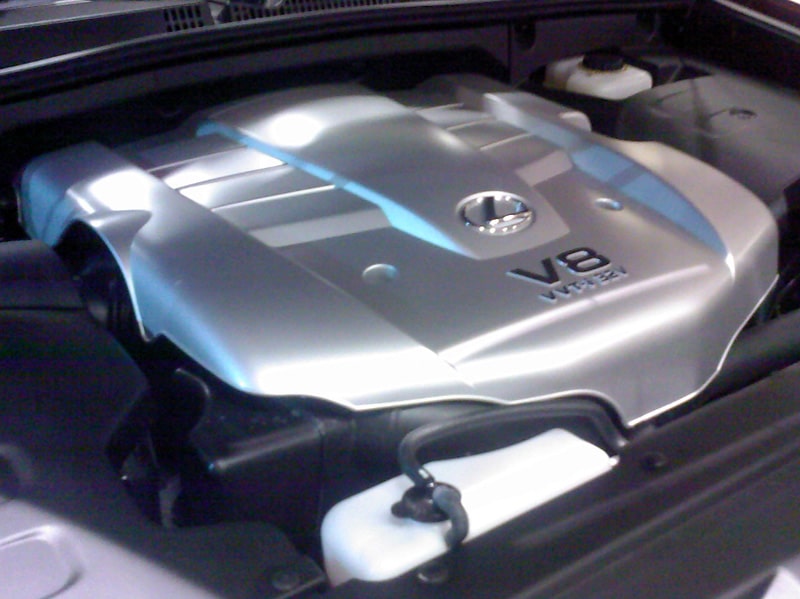

4. Toyota 2UZ-FE: Reliable Gas Power for Overland Trucks

For US-market overlanders preferring gasoline, the Toyota 2UZ-FE 4.7L V8 stands alone. Produced from 1998 through 2011, the engine powered the 100 Series Land Cruiser, first-gen Tundra, Sequoia, fourth-gen 4Runner, Lexus LX470, and Lexus GX470. Notably, the cast-iron block and aluminum heads handle 300,000 miles with timing belt service every 90,000 miles.

The 2UZ-FE produces 230 to 282 horsepower and 300 to 320 pound-feet of torque, smooth across the rev range. However, fuel economy is the trade-off at 13 to 16 mpg loaded. In contrast, the diesel options in this ranking deliver better mileage but require imported parts in some regions. As a result, the 2UZ-FE wins for US-market buyers wanting a no-drama gas V8 in the best overlanding truck platform sold here.

For deeper specs, see the Toyota 2UZ-FE deep dive, including exhaust manifold cracks on early VVT-i years. Additionally, pair this motor with a 100 Series Land Cruiser overland build for the strongest US-market gas overland package.

5. Toyota 1FZ-FE 4.5L Inline-Six

The 1FZ-FE powered the 80 Series Land Cruiser FZJ80 from 1993 through 1997 in the US market, longer in other regions. This 4.5-liter twin-cam, 24-valve inline-six delivers 212 horsepower and 275 pound-feet of torque. Notably, independent teardown footage from rebuilders shows examples surviving 343,000 miles with internals well within spec.

The 80 Series FZJ80 defines vintage overlanding for many enthusiasts. Specifically, strong cooling capacity, simple port injection, and an iron block keep the engine alive past 400,000 miles when maintained. However, head gasket weakness is the one concern at high mileage. Fuel economy also stays in the 12 to 14 mpg range loaded.

Parts move through Toyota’s network. Also, the aftermarket remains strong in Australia, the Middle East, and Africa. For an analog overlanding truck with V8 torque from an inline-six, the 1FZ-FE earns its slot.

6. Toyota 22R-E 2.4L Four-Cylinder

The Toyota 22R-E 2.4L four-cylinder is the engine the Hilux built its global reputation on. Produced from 1985 through 1995 in fuel-injected 22R-E form, the motor powered Toyota Pickups, early 4Runners, and the Celica. Notably, documented million-mile examples exist in the ToyotaNation forum archives, including a 1991 2WD pickup recorded at one million miles on factory internals.

Power ratings of 114 horsepower and 142 pound-feet of torque sound thin in 2026. However, paired with light 4Runner and Pickup chassis, the 22R-E pulls 19 to 22 mpg and refuses to die. Additionally, the cast-iron block, simple SOHC architecture, and timing chain (no rubber belt) cut common failure modes.

Parts availability remains exceptional, especially in developing markets where the Hilux still dominates. However, the engine runs slow on highway grades and stays underpowered for full-size overlanding loads. Still, the 22R-E earns its spot for lighter-build owners.

7. Mercedes OM617 and OM606 Diesel

Mercedes built two of the most reliable diesel engines in history. First, the OM617 5-cylinder 3.0L turbo diesel ran from 1974 through 1991 in W123 and W126 sedans. Notably, owners and rebuilders on the PeachParts forum call it the most reliable car engine ever made. Second, the OM606 inline-6, produced from 1993 through 2001, takes a different path with 24 valves and electronic injection, yet routinely reaches 500,000 miles per CarBuzz documentation.

For example, overlanders swap OM606 motors into G-Wagens, Land Cruisers, and Land Rovers when they want diesel torque with sedan-grade refinement. Power varies from 80 to 125 horsepower (OM617) and 134 to 177 horsepower (OM606). Torque hits roughly 184 pound-feet and 243 pound-feet respectively.

European parts availability is strong. However, North American parts cost more, and complex vacuum systems on OM617 trucks take experience to troubleshoot. For builders wanting quiet, smooth diesel torque, the OM606 swap is the most popular overlanding diesel transplant in 2026.

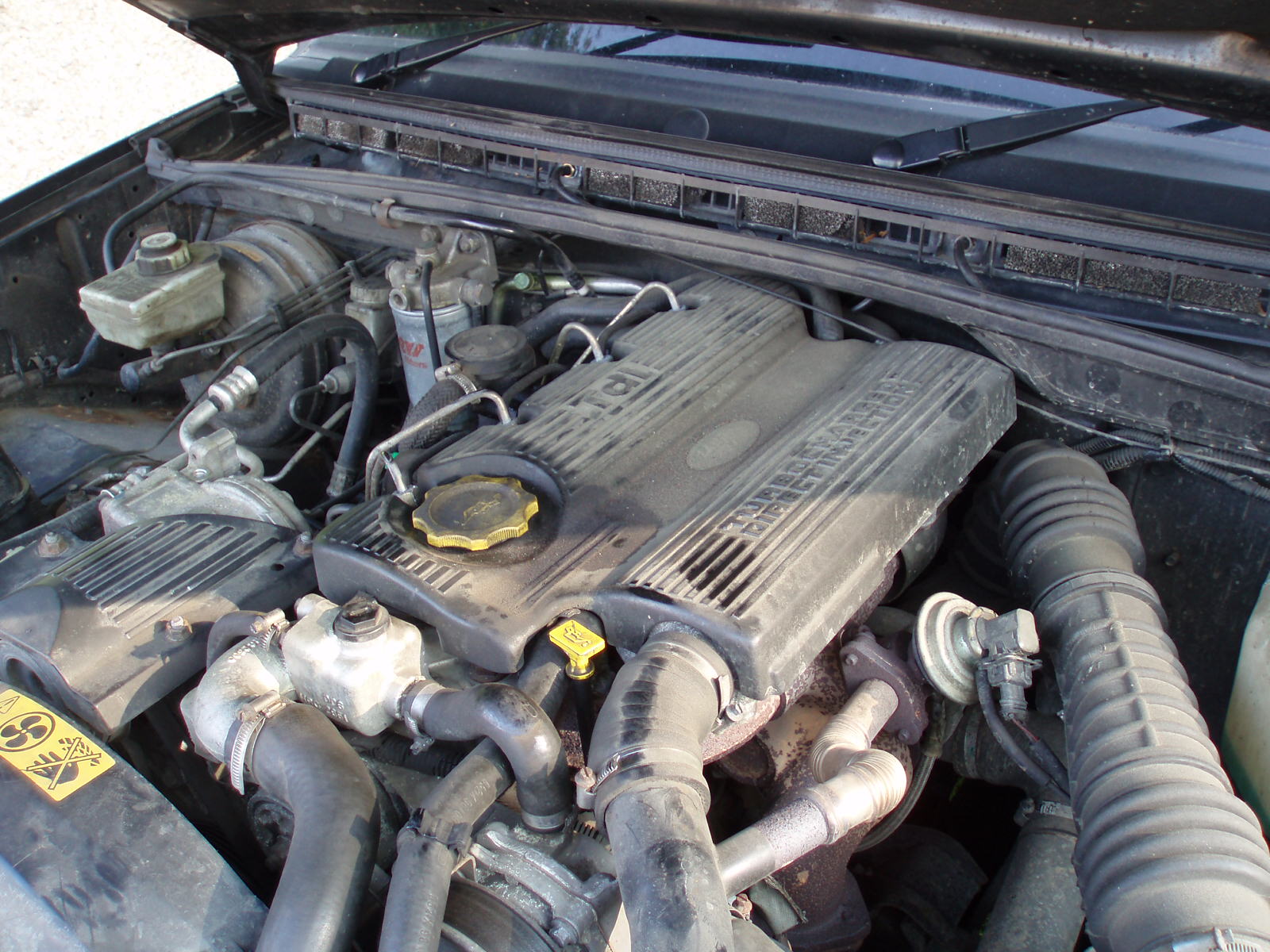

8. Land Rover 300TDI 2.5L Diesel

The Land Rover 300TDI built between 1994 and 1998 (with limited production through the early 2000s in select markets) is the diesel Defender fans defend with religious zeal. This 2.5L inline-four turbo diesel produces 111 horsepower and 195 pound-feet of torque. Specifically, mechanical Bosch injection, cast-iron block and head, and a robust direct-injection design make the engine simple to service in remote areas.

For example, Defenders fitted with the 300TDI have crossed 350,000 km in active overlanding service. In addition, one YouTube documentation series followed a 1993 Defender 200TDI overlander past the same milestone. Notably, strong torque at low rpm suits Defender gearing perfectly.

However, the documented soft spot is head gasket failure under overheating. Pulling the head before symptoms appear at high mileage saves the cylinder. Additionally, a breakdown of Land Rover diesel reliability covers other Defender engine choices.

9. Jeep 4.0L AMC Inline-Six

The Jeep 4.0L AMC inline-six is the affordable American option on this list. Built from 1987 through 2006, it powered the Cherokee XJ, Wrangler YJ and TJ, and Grand Cherokee ZJ/WJ. Output of 173 to 190 horsepower and 220 to 235 pound-feet of torque meets overlanding needs without complexity.

Reddit’s r/Jeep community regularly posts 300,000-mile examples still on original internals. Notably, simple pushrod architecture, port injection (from 1991 onward), and cheap parts make the 4.0 the easiest engine on this list to wrench on in your driveway. As a result, Cherokees and Wranglers with this motor remain budget-friendly entries into overlanding.

However, the 0331 head castings (2000-2001 in Wrangler TJ and Cherokee XJ) carry a known cracking risk. Verify head replacement history before buying. Additionally, fuel economy of 15 to 18 mpg is a soft spot, but the bottom end runs forever.

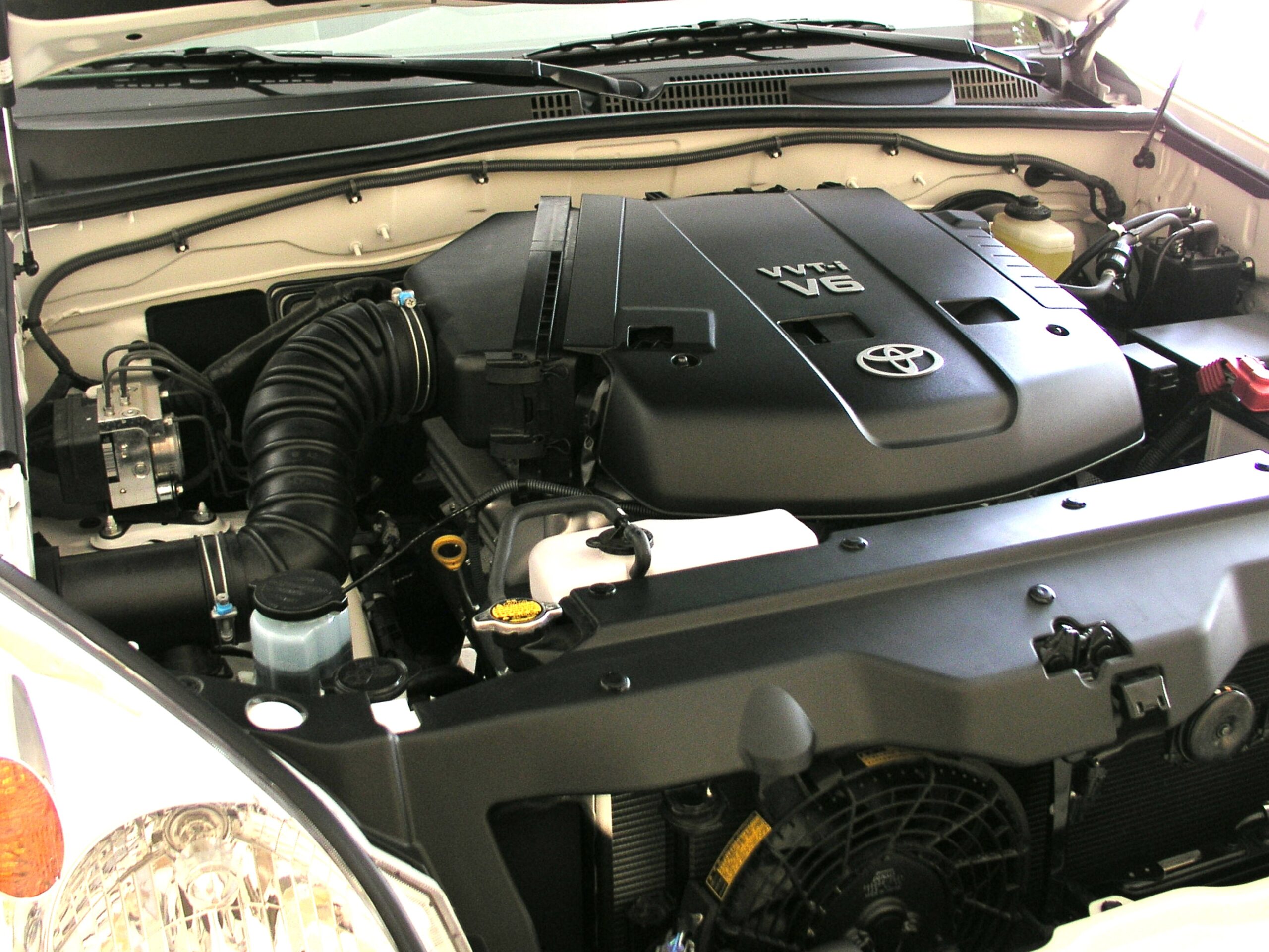

10. Toyota 1GR-FE 4.0L V6

The Toyota 1GR-FE is the modern entry on this list. Powering the Tacoma, fourth- and fifth-gen 4Runners, FJ Cruiser, and Land Cruiser Prado 150 Series since 2003, the 4.0L aluminum-block V6 produces 236 to 285 horsepower and 266 to 278 pound-feet of torque. Additionally, dual VVT-i and a timing chain replace the belt-driven design of older Toyota V6s.

For example, owners on r/LandCruisers and TacomaWorld confirm regular 200,000-mile examples. Notably, valve cover gasket replacements are the only common service item. Also, the aluminum block is lighter than the 2UZ-FE iron unit, helpful for fuel economy at 17 to 20 mpg.

For new-buyer overlanders wanting manufacturer warranty support and modern emissions compliance, the 1GR-FE is the smart pick. As a result, paired with a 4Runner or FJ Cruiser, you have a platform supporting a 20-year build runway.

1HZ vs. 12-Valve Cummins: Which Wins for You?

Factor	Toyota 1HZ	Cummins 5.9 12V
Best For	Global expedition travel	US-based heavy-payload builds
Power	129 HP, 209 lb-ft	215 HP, 440 lb-ft
Parts Globally	Everywhere	Mostly US
Documented Lifespan	1,000,000+ km	500,000+ mi

The 1HZ wins for round-the-world expedition travel because parts and service ride on every continent. However, the 12-Valve Cummins wins for North American overlanders towing trailers and running heavy slide-in campers. Specifically, torque, payload, and aftermarket support tilt toward Cummins in the US.

Price brackets diverge too. For example, used HZJ80 Land Cruisers run $25,000 to $60,000 in the US thanks to import scarcity. In contrast, clean 1994-1998 Dodge Ram 2500/3500 trucks with the 12-Valve range from $20,000 to $40,000. As a result, Cummins wins on dollar per mile of expected service inside North America. For US buyers seeking the most reliable truck engine with massive aftermarket support, the 12-Valve takes the title.

Pros and Cons of Reliable Overland Engines

Final Verdict

For most overlanders building a platform in 2026, the most reliable overlanding engines split into two practical groups. First, if you plan to drive across continents and refuel in countries without Toyota or Ford parts depots, the Toyota 1HZ remains the unmatched pick. Specifically, mechanical simplicity beats every spec sheet here.

However, if your overlanding stays in North America and you want torque, towing capacity, and a strong aftermarket, the 12-Valve Cummins is the pick. For example, paired with a 1994-1998 Dodge Ram 2500 4×4 and a 47RE rebuild, the rig outlasts the buyer.

Gas-engine buyers in the US should narrow to two options. First, the Toyota 2UZ-FE in a 100 Series Land Cruiser delivers premium reliability. Second, the Jeep 4.0L serves entry-level budget buyers. Both serve their roles without drama, and both have decade-deep parts pipelines.

Whichever you pick, build the platform around the motor. The truck around it changes; the engine does not. Additionally, for a step-by-step approach, see how to build an overlanding truck once you select your motor.

Frequently Asked Questions

What is the most reliable 4×4 for overlanding?

The Toyota Land Cruiser 80 Series HZJ80 with the 1HZ 4.2L diesel remains the most reliable 4×4 for overlanding by consensus across Expedition Portal, IH8MUD, and Reddit r/overlanding. Specifically, mechanical injection, global parts, and 1,000,000+ km documented service intervals back the claim.

What is the most reliable diesel engine ever made?

Two engines share the title depending on use case. First, the Toyota 1HZ wins for global expedition use. Second, the 1994-1998 Cummins 5.9L 12-Valve wins for North American heavy-duty service. Additionally, the Mercedes OM617 is a close third for sedan-platform applications.

Are gas or diesel engines better for overlanding?

Diesel wins for global travel because mechanical injection survives bad fuel and isolation from dealer networks. However, gas wins for US-only overlanding where modern diesel emissions hardware (DPF, SCR, AdBlue) creates failure points outside of dealer service ranges. Pick by your travel scope first.

Was there a 4.3L diesel in Toyota Land Cruisers?

No. The famous mid-1990s Land Cruiser diesel is the 4.2L 1HZ (naturally aspirated) or the 4.2L 1HD-T (turbocharged). Both displaced 4,164 cc. No production Toyota Land Cruiser ran a 4.3-liter diesel engine.

Is the 7.3 Power Stroke strong enough for overlanding?

Yes. For example, the 7.3L Power Stroke handles overlanding loads up to 12,000 pounds with the Super Duty chassis. Notably, fleet trucks crossing 1,000,000 miles in commercial service prove the bottom end. Carry a spare CPS sensor and IPR valve for remote travel.

Which Toyota engine is the most reliable for overlanding?

The Toyota 1HZ diesel wins globally. However, for US buyers without a diesel option, the 2UZ-FE V8 in the 100 Series Land Cruiser is the strongest pick. Additionally, the 1FZ-FE inline-six in the 80 Series ranks as a close second.
