2026 Shelby F-150 Off-Road Debuts: 810 HP Raptor R Rival

 9 min read

2026 Shelby F-150 Off-Road Overview: A New Raptor R Rival

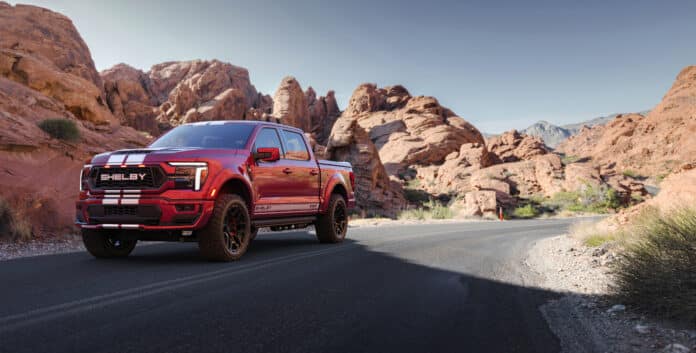

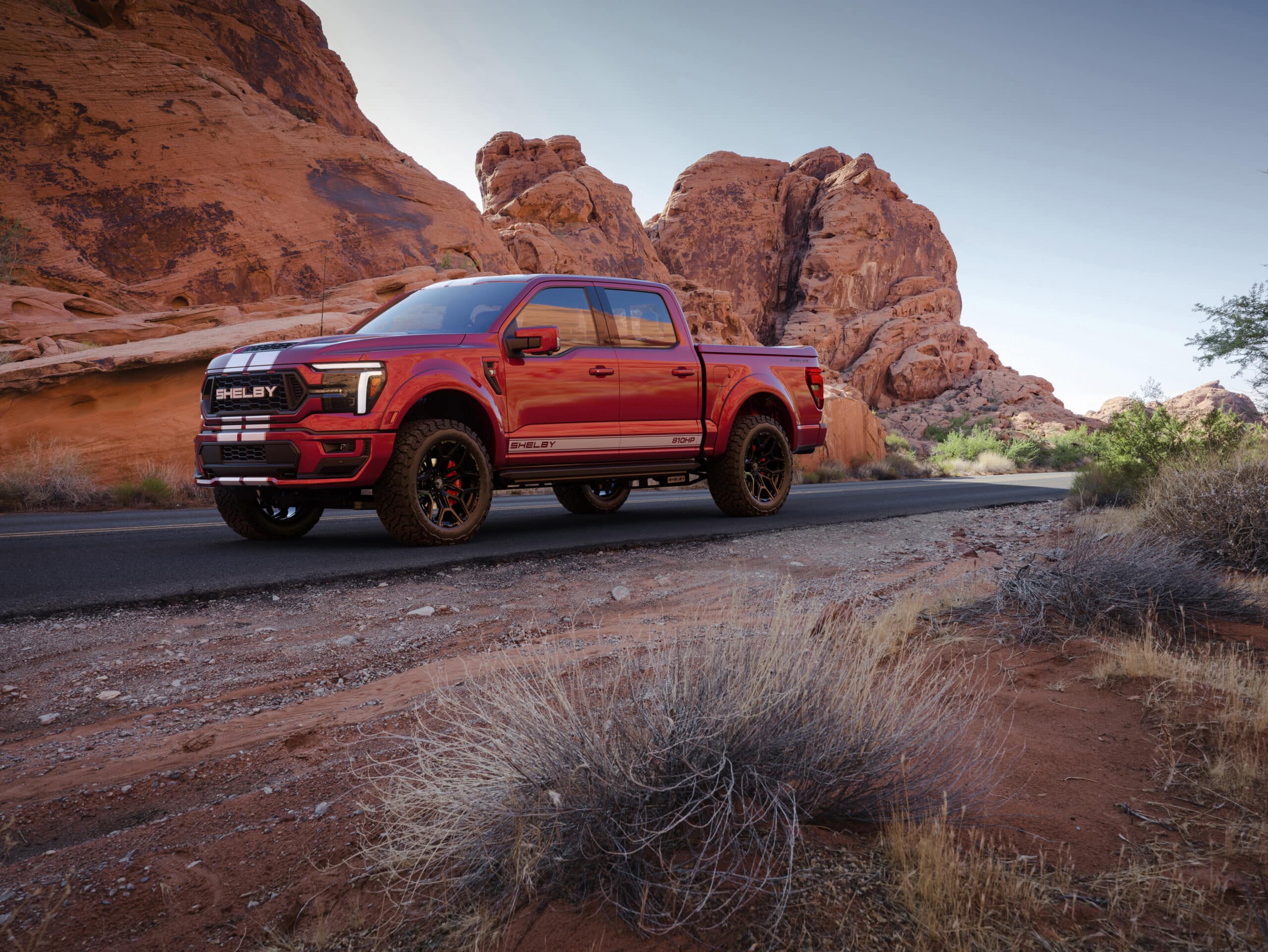

The 2026 Shelby F-150 Off-Road arrived in spring 2026 as Shelby American’s latest run at the high-output off-road pickup market, and it lands as a direct alternative to the Ford F-150 Raptor R. Shelby American built the truck on a Lariat SuperCrew foundation with four-wheel drive, then layered on a stage 2 supercharger, performance suspension, and the brand’s signature stripes. As a result, buyers get a full-throttle desert truck with a different badge and a different look from the factory Raptor lineup.

Shelby is targeting performance buyers who already considered the Raptor R but wanted a more exclusive build with classic Shelby styling cues. Production is capped at 600 U.S. units, with additional allocation set aside for the rest of North America. Each truck is logged in the official Shelby Registry, and the owner receives an invitation to join Team Shelby. For comparison, Ford produces the Raptor R in higher annual volumes and ships it through every Ford dealer, so the new pickup sits in a far rarer slot.

Pricing starts at $140,795, and Shelby confirms the sticker includes the base 2026 F-150 Lariat. By contrast, the Raptor R opens around $112,000, while specialty tuner builds like the PaxPower 770-hp F-150 conversion have pushed even higher. The Ford F-150 Shelby therefore lands in the middle of the boutique off-road truck pricing band while pushing past every factory F-150 on horsepower.

For off-road buyers, the real question is whether this new Off-Road truck delivers trail capability matching its sticker, or whether the appeal sits mostly in horsepower and exclusivity. The hardware list, covered section by section below, suggests a mixed answer. Some upgrades are clearly trail-grade, while others lean toward style and on-road presence.

Key Specs at a Glance

Specification	Details
Base vehicle	2026 Ford F-150 Lariat SuperCrew, 4WD
Engine	5.0L Coyote V8 with stage 2 supercharger
Horsepower	810 hp
Intake	Carbon fiber intake tube, performance intake, high-flow air filter
Cooling and fueling	Aluminum performance heat exchanger, high-performance fuel injectors, Ford performance spark plugs
Exhaust	Borla exhaust with custom Shelby tips
Front suspension	King Race Series 2.5 adjustable coilovers
Rear suspension	Rear traction bars, full suspension lift
Brakes	Baer drilled and slotted rotors
Wheels and tires	22-inch alloy wheels with 35-inch BFGoodrich KO3 all-terrain tires
Exterior	Aluminum dual intake ram air hood, unique grille, power deployable running boards, body color fender flares, painted bumper cover and fender vents, painted tonneau, full-body Shelby stripes
Production	600 U.S. units, plus additional North American allocation
Starting price	$140,795 (includes base F-150 Lariat)
Warranty	Three-year, 36,000-mile Shelby warranty; factory Ford powertrain warranty still applies

810 Horsepower from a Supercharged Coyote V8

Shelby American built the Off-Road truck around the 5.0L Coyote V8, the same engine family Ford has produced since the 2011 Mustang GT and currently fits in the F-150. Then the team added a stage 2 supercharger to push output to 810 horsepower, a number Shelby confirms in its launch materials. By way of reference, the factory Ford F-150 Raptor R produces 720 horsepower from its supercharged 5.2L V8. So the new Shelby clears the Raptor R by 90 horsepower from a smaller-displacement engine, an unusual outcome in the segment.

The supercharger is fed by a carbon fiber intake tube and breathes through a powder-coated blower and intake manifold finished in Ford Racing blue. Supporting hardware includes a performance intake, a high-flow air filter, and an aluminum performance heat exchanger sized to handle sustained boost. Shelby also fits high-performance fuel injectors and Ford performance spark plugs, two changes needed to keep the air-fuel mixture safe under load. Borla exhaust with custom Shelby tips finishes the system and gives the truck its signature sound.

810 horsepower is overkill for crawling because slow-speed work taps out under 300 horsepower. However it earns its keep in a sand wash or open desert run, similar to the Raptor R and Ram TRX rather than rock-crawl rigs like the Ford Bronco Badlands Sasquatch or Jeep Wrangler Rubicon 392. For more on V8-powered Ford performance trucks across the brand’s history, see our coverage of the Coyote-powered Ford Bronco DR.

Suspension, Brakes, and Off-Road Hardware

Underneath the truck, Shelby American fits a full suspension lift, King Race Series 2.5 adjustable front coilovers, and rear traction bars. Baja-style desert builds and SCORE Trophy Trucks rely on King’s 2.5-inch race shocks, so the choice signals real off-road intent. Shelby has not yet published wheel travel figures for the new Off-Road model, and those numbers are the first detail buyers should request from a dealer.

Drilled and slotted Baer brake rotors handle the stopping work. With 810 horsepower pushing a full-size truck north of 5,500 pounds, larger rotors with better heat shedding are needed to keep braking consistent during fast desert runs and on-road performance use. Baer is a well-known supplier in the performance brake space, and the drilled-and-slotted setup is a common pairing with heavy supercharged trucks.

Shelby confirms the truck rides on 22-inch alloy wheels wrapped in 35-inch BFGoodrich KO3 all-terrain tires, although approach and departure angles have not yet been published. Most factory off-road trucks publish those clearance figures because they tell buyers how much trail room the lift delivers in practice. Until Shelby releases approach and departure data, treat the new Off-Road truck as a high-speed desert build first, with rock-crawl capability still unconfirmed. To understand how lift geometry affects off-road clearance, our explainer on how body and suspension lifts work covers the basics.

Exterior Styling and the Classic Shelby Look

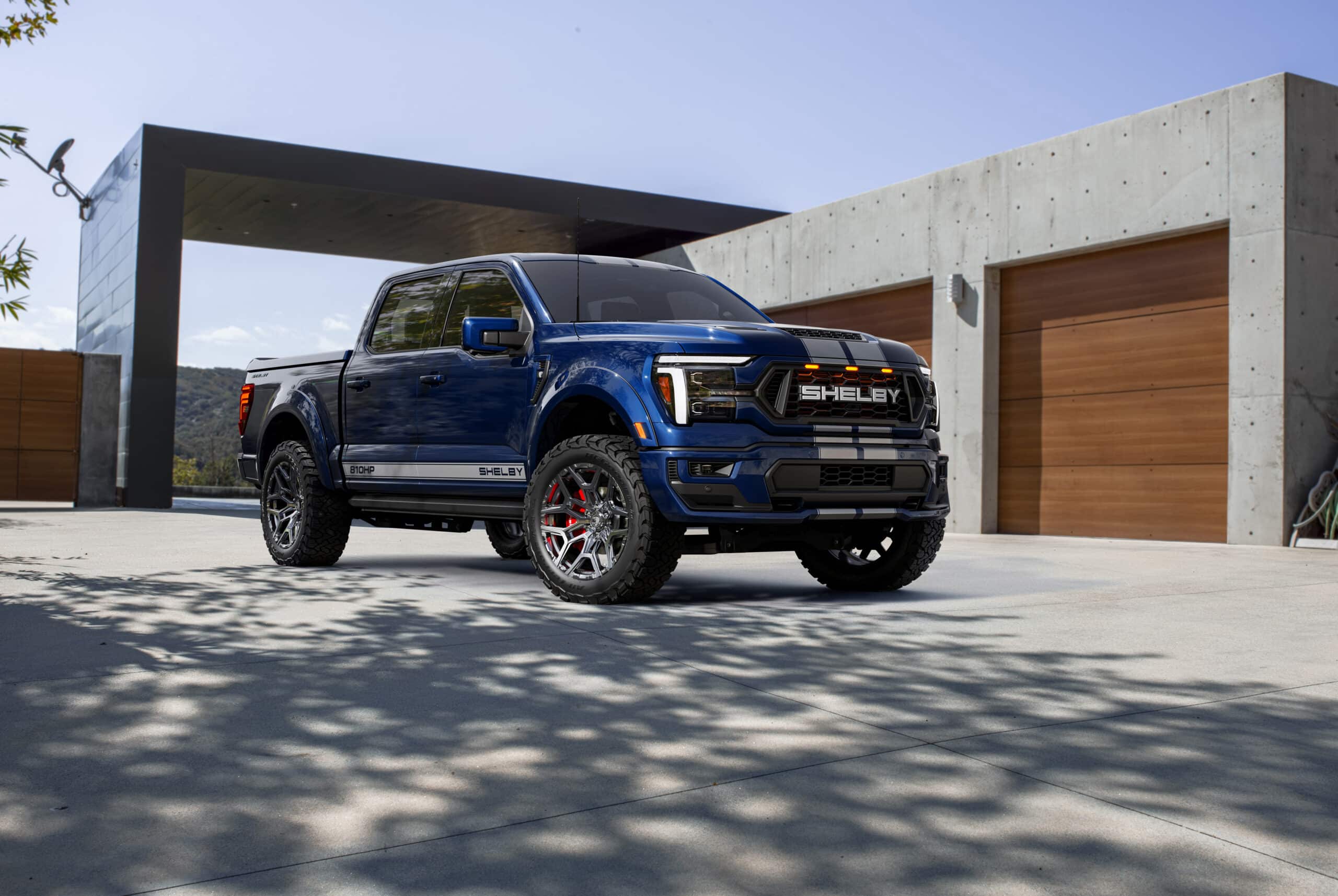

Styling is where the Shelby F-150 Off-Road most clearly separates itself from the Raptor R. Shelby American fits an aluminum dual intake ram air hood, a unique grille, power deployable running boards, and body color fender flares. The painted front bumper cover continues the body color theme, while painted fender vents and a painted tonneau cover round out the exterior treatment.

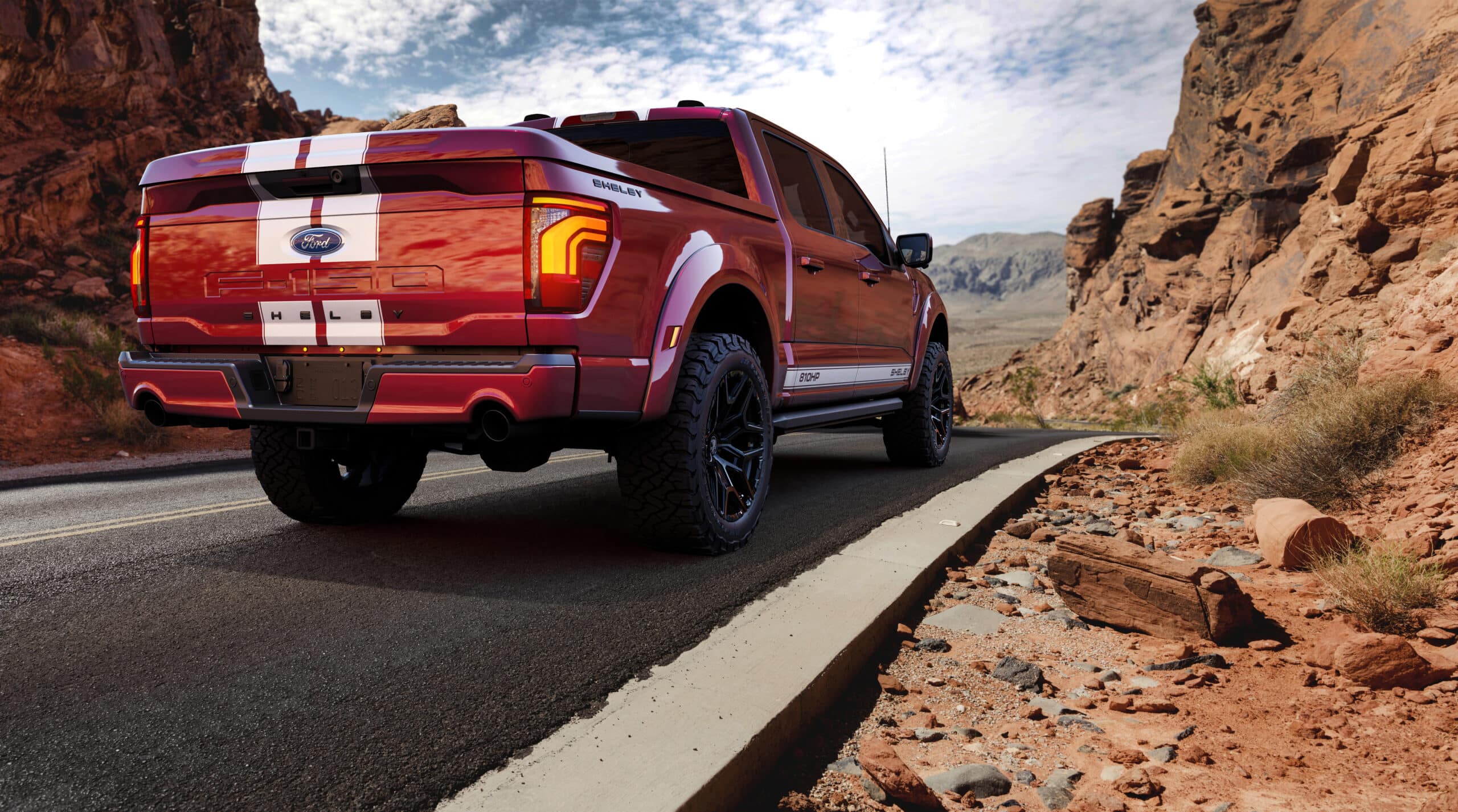

Full-body Shelby stripes finish the look. These are the same heritage stripes Shelby has used on Mustangs, F-150s, and F-250s for decades, so the styling reads as classic American performance rather than purpose-built desert truck. For comparison, the Raptor R leans on aggressive flares, factory bedside graphics, and visible skid plates. The Shelby instead reads as a street-presence truck with off-road hardware bolted underneath.

Power deployable running boards are a curious choice on a desert-capable truck because they hang low and limit ground clearance. After putting four seasons on a Jeep Gladiator and a year in a Chevy Colorado ZR2 across Big Bear and Sierra trails, the editor’s view is simple: deployable running boards are the first thing serious off-road buyers either remove or swap for rock sliders. While the boards are useful for daily driving and for shorter riders climbing into a lifted cab, they signal the new Shelby is meant to live on pavement as much as on the trail.

Production Numbers, Pricing, and How to Buy One

Only 600 units of the new Off-Road model will be offered through Shelby Performance Ford dealers in the United States, with additional allocation reserved for the rest of North America. Each build is documented in the official Shelby Registry, and every owner receives an invitation to join Team Shelby, the company’s owners’ club. For context, Shelby’s previous Ford-platform builds, such as the Shelby F-250 Super Baja, have followed similar capped-allocation patterns and sold out within weeks.

Pricing opens at $140,795, with the base 2026 F-150 Lariat included. The Shelby-side additions therefore amount to roughly $77,000 over a comparably equipped Lariat SuperCrew 4×4, which retails for around $63,000. By contrast, Ford’s F-150 Raptor R opens near $112,000 and includes the supercharged 5.2L V8, Fox Live Valve shocks, and 37-inch tires from the factory. So the Shelby premium buys exclusivity, additional horsepower, and Shelby-specific cosmetics rather than more advanced off-road suspension technology.

Each truck ships with a three-year, 36,000-mile Shelby warranty layered on top of Ford’s factory powertrain warranty, which remains applicable. Because Ford’s powertrain warranty covers five years or 60,000 miles, the bolt-on Shelby parts and the Ford guts both stay covered. Interested buyers should contact a local Shelby Performance Ford dealer or visit Shelby.com for Shelby F-150 price details, allocation, and ordering.

Shelby F-150 Off-Road vs Ford F-150 Raptor R

The Shelby F-150 Off-Road and the Ford F-150 Raptor R sit in the same segment, but they take different paths to get there. Ford engineers the Raptor R as a complete factory desert truck, with Fox Live Valve internal-bypass shocks, a wider track, 37-inch BFGoodrich KO2 tires, and a purpose-built rear five-link suspension. Shelby American instead starts with a Lariat SuperCrew, then bolts on aftermarket-style upgrades to achieve a similar end result.

On horsepower, the Shelby wins by 90, posting 810 horsepower compared to 720 for the Raptor R. Suspension engineering, however, favors the Raptor R because of factory integration and adaptive damping. The Shelby’s King 2.5 coilovers are race-grade hardware, but adjustable coilovers require setup and tuning to perform at their best, while Fox Live Valve shocks adapt automatically to terrain and driver inputs. So the choice comes down to whether you prefer factory polish or maximum peak power with a tuner-build personality.

On price, the Shelby premium is real. At $140,795, the Shelby costs roughly $28,000 more than the Raptor R’s $112,000 base price. For some buyers, the rarity of a 600-unit run plus the Shelby badging is worth the difference. Others will see the Raptor R’s full factory engineering and broader dealer network as the smarter buy. If high-speed desert running is the goal, our breakdown of how the Raptor 37 compares to the Ram TRX covers the factory desert truck landscape in more detail.

Pros and Cons

The Bottom Line for Off-Road Truck Buyers

The 2026 Shelby F-150 Off-Road is built for the performance buyer who already considered a Raptor R but wanted something rarer, louder, and visually distinct. Its 810 horsepower output is the headline number, and the King Race Series 2.5 coilovers signal serious desert intent. For collectors and enthusiasts who care about the Shelby badge and the limited 600-unit allocation, the truck delivers a clear pitch and a documented place in the Shelby Registry.

Trail-focused buyers will want to wait for published wheel travel and approach/departure data before committing. The Raptor R remains a more documented and factory-integrated desert truck, with adaptive Fox Live Valve shocks, 37-inch tires, and a wider track included from the factory. Rock crawlers should look elsewhere entirely. Trucks like the Ford Bronco Badlands Sasquatch or Jeep Wrangler Rubicon 392 are better matched to slow-speed technical terrain.

On value, the Ford F-150 Shelby sits at a premium. The $28,000 jump over a Raptor R buys 90 more horsepower, Shelby-specific cosmetics, and rarity. However, it does not deliver more advanced suspension engineering. Whether the premium is worth it depends on how heavily the buyer weighs exclusivity and badge value against factory integration.

For most off-road buyers shopping in the $140,000 range, the decision now comes down to factory polish versus tuner exclusivity. The Raptor R offers the former, while the Shelby F-150 Off-Road offers the latter. Buyers who want both factory engineering and Shelby pedigree will need to wait and watch how the segment evolves, because for now those two priorities sit in separate trucks. To see how this new Shelby fits into the broader 2026 off-road truck landscape, including factory options across Ford, Chevrolet, and Jeep, our guide to the best off-road and overland vehicles of 2026 covers the current field.

Frequently Asked Questions

How much does the Shelby F-150 Off-Road cost?

Pricing starts at $140,795 and bundles in the base 2026 Ford F-150 Lariat SuperCrew. Final Shelby F-150 price totals depend on options and dealer markup, so check with a Shelby Performance Ford dealer for an out-the-door quote.

How much horsepower does the new Shelby make?

The Off-Road truck produces 810 horsepower from a stage 2 supercharged 5.0L Coyote V8. By comparison, the Raptor R produces 720 horsepower, so the Shelby clears it by 90.

How many will be built?

Shelby American will build 600 units for the U.S. market, with additional allocation reserved for the rest of North America. Each truck is documented in the official Shelby Registry, and every owner receives an invitation to join Team Shelby.

Is the truck supercharged from the factory?

Yes, although the supercharger is fitted by Shelby American rather than Ford. Shelby starts with a Lariat SuperCrew running the naturally aspirated 5.0L Coyote V8, then adds a stage 2 supercharger to reach 810 horsepower.

What warranty comes with the truck?

Each truck ships with a three-year, 36,000-mile Shelby warranty covering the Shelby-installed components. In addition, Ford’s factory powertrain warranty covers the underlying drivetrain for five years or 60,000 miles.

How does it compare to the Ford F-150 Raptor R?

The new Shelby makes 810 horsepower versus 720 for the Raptor R. However, the Raptor R uses adaptive Fox Live Valve shocks and 37-inch tires from the factory. Overall, the Raptor R wins on integration while the Shelby wins on horsepower and rarity at a roughly $28,000 premium.

Where to buy one?

Sales run through Shelby Performance Ford dealers across the United States. Contact a dealer or visit Shelby.com for Shelby F-150 price and allocation details.
